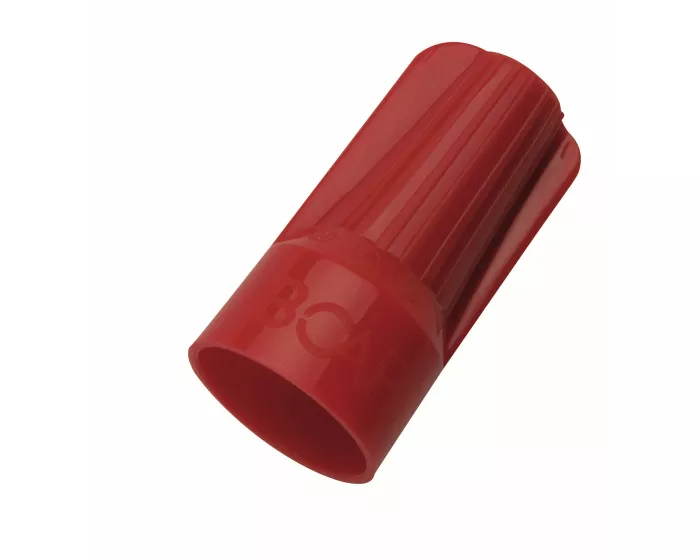

B-CAP® wire connector accepts 2 18 to 5 12 AWG wire combinations. Rated for 600 Volt maximum.
Low profile design gets you into tight spaces and hard-to-reach spots comfortably
Slim, classic fins offer a secure grip for extra leverage and easy installation
Live-action spring of the Red B2 easily handles 2 18 up to 5 12, and will even dead-end a single 14
Red B2 model is the most compact connector on the market for up to 5 12
Unique, space-saving profile is perfect for “old” work? or shallow boxes
Specifications
Brand Name
Ideal
Sub Brand
B-Cap®
Voltage Rating
600 V
Conductor Size
5/12 AWG
Number of Conductors
2,6
Material
Flame-retardant Polypropelene
Color
Red
Standards
CSA C22.2 188, UL 486C Listed, RoHS
Application
Insulating or Joining 1 or more conductors
UPC
781789451879
