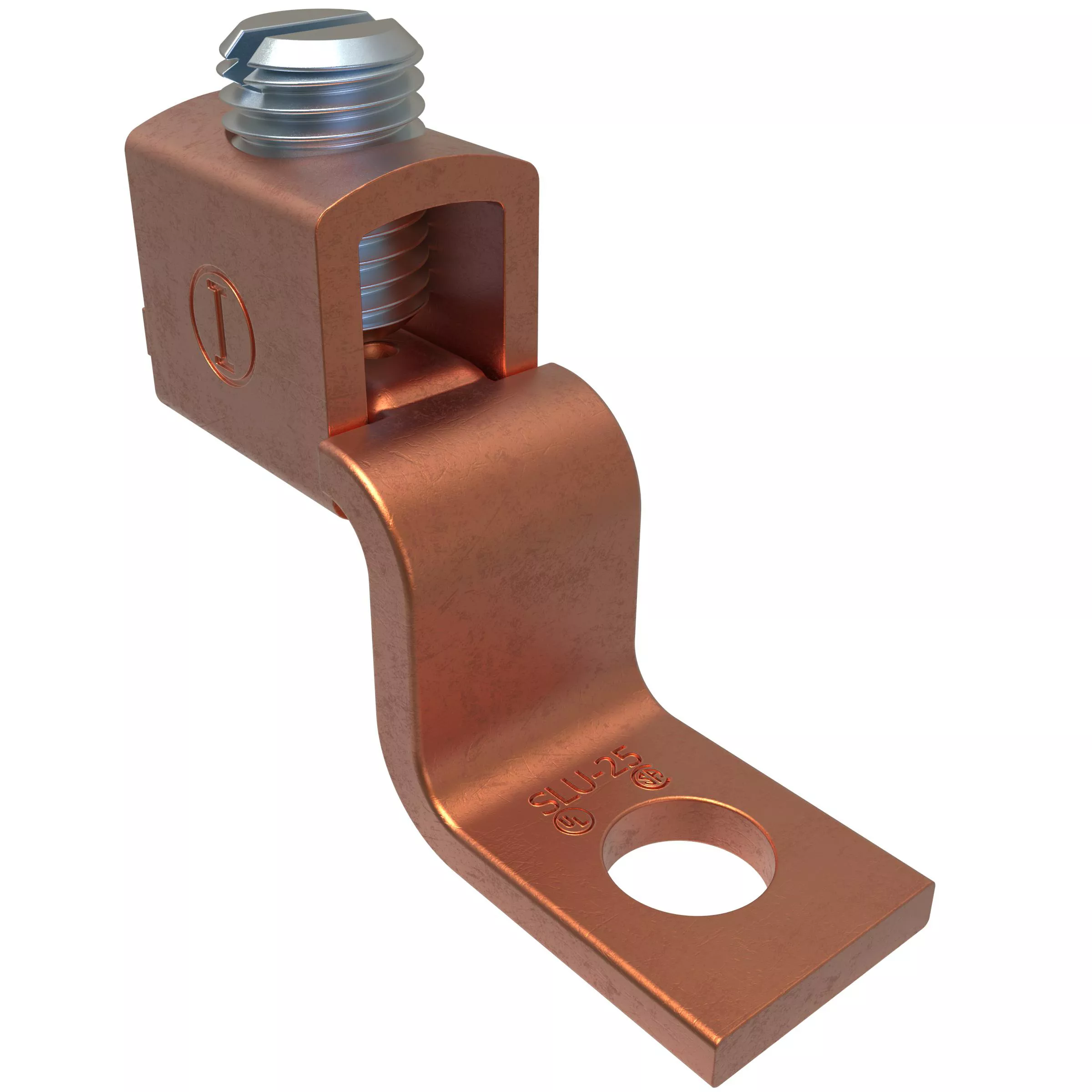

Copper mechanical lug, one conductor, one hole. Manufactured from electrolytic copper tubing and strip stock. Provides maximum conductivity and strength. Saves space and reduces installation time. Saves space and reduces installation time. Permits inventories to be kept to a minimum. Provides efficient use and flexibility in the field. Ensures reliability for copper conductor.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Mechanical Lug | Type | SLU, Offset Tongue, Straight |
| Conductor Type | Copper | Conductor Size | 14-6 AWG |
| Number of Bolt Holes | 2 | Material | Copper |
| Number of Conductors | 1,2 | Bolt Size | 10 |
| Tongue Size | 0.4688 in L | Voltage Rating | 2000 V |
| Mounting Hole Size | 13/64 in | Temperature Rating | 90 °C |
| Finish | NA | Color | Copper |
| Dimensions | 3/16 in L x 3/4 in W | Standards | UL 486A-B, CSA Certified, UL File Number E6207 |
| Application | For Terminating Connector | UPC | 783669829464 |
