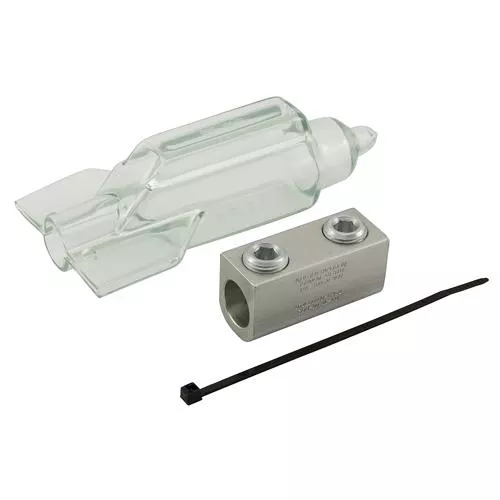

IN LINE, NO, 600 V, CONDUCTOR SIZE 14 AWG, 2 AWG, CONDUCTOR MATERIAL ALUMINUM/COPPER, 2 SCREWS, SIZE 3.83 INCH L X 1.75 INCH W X 0.95 INCH H, APPROVAL UL 453-G, CSA, CLEARSPLICE[T] BRAND, SPAR MODEL
Specifications
| Brand Name | Ilsco | Sub Brand | RocketSplice® |
| Item Name | Splicer/Reducer | Type | Insulated |
| Conductor Type | Aluminum and Copper | Conductor Size | 2-14 AWG |
| Material | Aluminum | Series | SPAR |
| Number of Conductors | 2 | Voltage Rating | 600 V |
| Temperature Rating | -45 to 90 °C | Finish | Tin Plated |
| Color | Clear | Dimensions | 3.83 in L x 1-3/4 in W x 0.95 in H |
| Standards | UL 486B, CSA Certified, RoHS Compliant | Application | Insulated Splicer-Recducer Connector |
| UPC | 783669857221 |
