For over a decade, Infinity Drain has established itself as a leader in design-centric decorative shower drains with a reputation of unsurpassed quality. From hand polishing decorative grates to custom fabrication – all at the exacting specifications of customers, Infinity Drain offers the broadest selection of decorative choices and installation options. Its award-winning designs and innovations, including the Site Sizable linear drain, continue to shape barrier-free bathroom design. For commercial and residential applications, Infinity Drain is revolutionizing shower installation with its completely waterproof Stainless Steel Shower Base backed by an original owner lifetime guarantee against waterproofing failure. Infinity Drain products are proudly fabricated in Long Island, NY, USA.
Specification

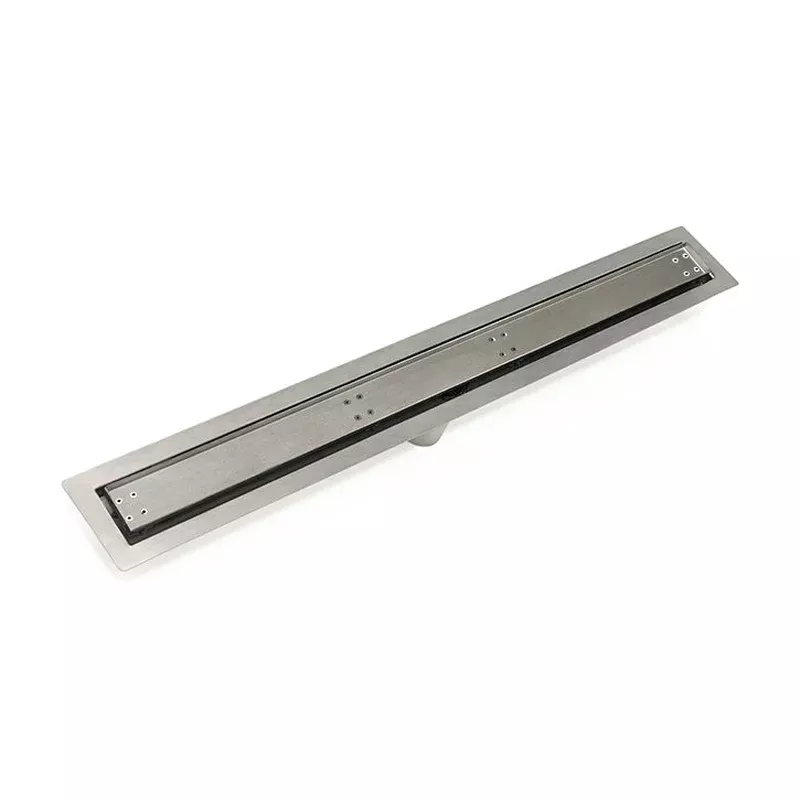

- Fixed Flange: Pre-pitched channel with set length with center outlet location
- Waterproofing: Liquid membrane, Fabric sheet
- 16 gauge, 304 stainless steel tile-in top grate with stainless steel channel
- Accepts flooring material up to 3/8 material
- Finished width: 2-1/2 , Min. height above subfloor*: 3/8
- Capacity: 9 gallons per minute
- No-hub connection to waste line with rubber coupling (not included)
- Recess channel into subfloor with placement brackets ST 65
- Specialty channel installation options available FCB 65, FCH 65
Contact Us
to purchase parts separately.(*Catalog*)
