Product Description

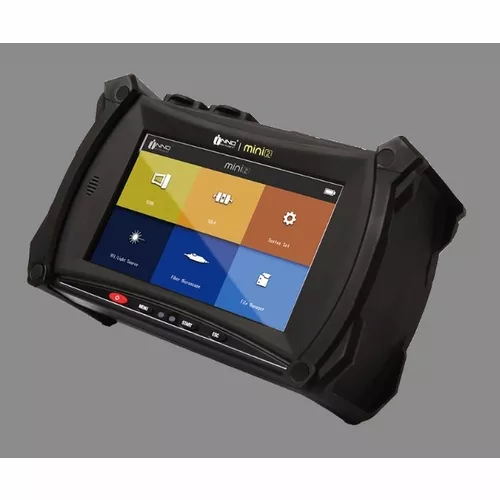

INNO MINI 2OTDR SM 1625 live fiber only port dB, APC, VISUALIZER, TOUCH SCREEN *NO SCOPE*NEWINNO MINI 2OTDR SM 1625live fiber only port dB, APC, VISUALIZER, TOUCH SCREEN *NO SCOPE*NEWITEM MINI 2OTDR INNO SM 1625 live fiber only port dB, APC, VISUALIZER, TOUCH SCREEN *NO SCOPE*The MINI2 OTDR is used in the installation and maintenance of fiber optic cables. Features of the MINI2 OTDR include high precision test capabilities, fast response times, and easy to learn operation. The multi-point capacitive touch screen allows for user-friendly operation. The MINI2 OTDR offers accurate and fast test results and creates a report automatically. The MINI2 OTDR’s compact design, delivers a lightweight, truly hand-held device.Specification OverviewOTDRDisplay Size5 inches, High Brightness TFT LCD, resolution of 800×480Distance Units m / km / mile / ftRange SettingsSMF1 : 32/30dB (1310/1550nm) / SMF2 : 30dB (1625nm Live)Pulse Widths5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1µs, 2µs, 10µs, 20µsLinearity0.03dBResolution0.04m ~ 10.24mSampling Points110,000 pointsOutput Power20mWDimensionsSize (HWD) 4.52H x 6.81W x 2.51D inchesWeight 1.98 pounds (900 g with battery)Package & AccessoriesProductTypePower CableACC-25AC AdaptersJS-180300Carrying CaseICC-71Shoulder StrapST-01Optional AccessoriesTypeMicroscopeV20Power MeterV30
