Product Description

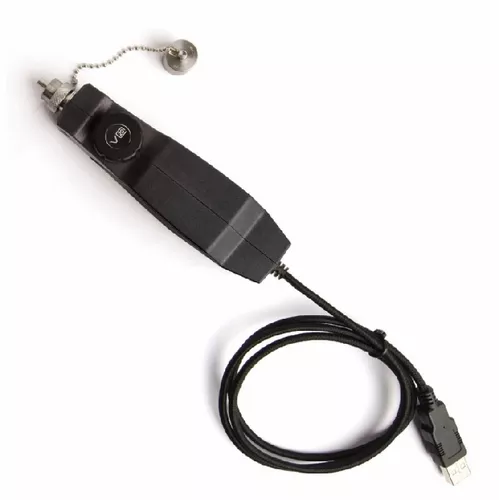

INNO V20 Fiber Optic Microscope with Tips SC, ST, LC, UPC /APC for INNO OTDR NEWINNO V20 Fiber Optic Microscope with Tips SC, ST, LC, UPC /APC for INNO OTDR NEWItem V20 INNOFiber Optic Microscope with Tips SC, ST, LC, UPC /APC for INNO OTDR NEWThis is a replacemnt scope for INNO otdr’s and can be used with a computer with the software from the manufacturer’s website – it is a free download.The Fiber Microscope is chiefly used in checking if the fiber end-face is clean. With the ability to display a clear image and the double amplification function, the V20 is able to analyze the cleanliness of the fiber end-face.Technical SpecificationsResolution 3.2µmImage sensor 640 x 480 (VGA)Visual test <5µmView angle 200µm*200µm of high magnification / 360µm*360µm of low magnificationLight source Blue LEDluminance technique Coaxial light sourceDigital zoom 3 gradesConnector USB 2.0Operating / Storage temperature -10°C to 50°C / -40°C to 70°CPatchcord Tip Adapters 2.5mm (UPC, APC), 1.25mm (UPC, APC)Size and WeightHeight: 1.33 inches (34 mm)Width: 5.9 inches (150 mm)Depth: 1.37 inches (35 mm)Weight: 0.37 pounds (168 grams)
