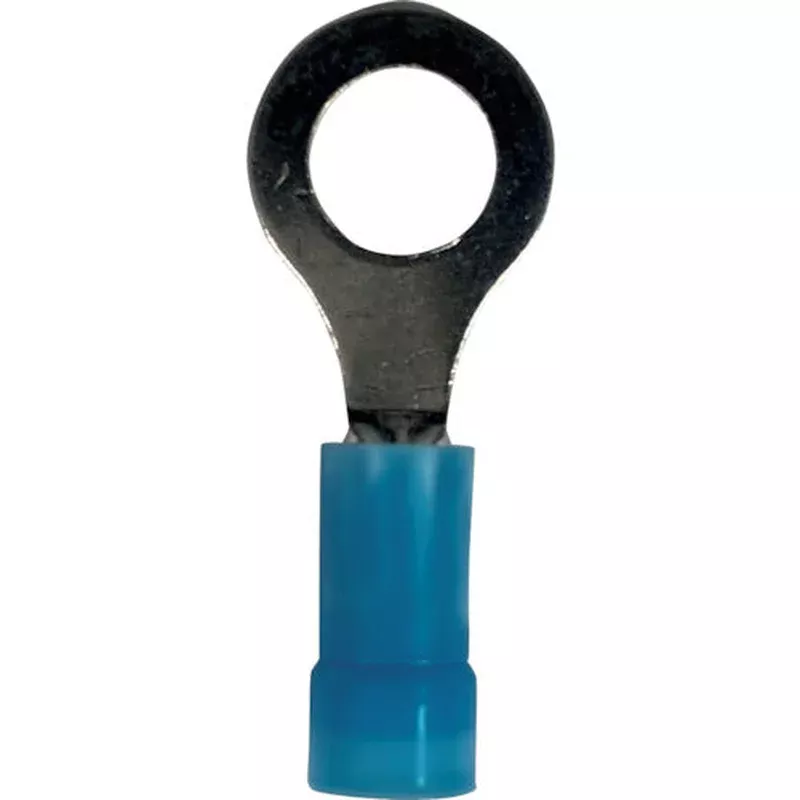

Features Round crimp terminal with vinyl insulation coating.
Use For connecting electric wires.
Specification Wire binding range Stranded wire ([[MM2]]): 1.5 to 2.5Wire binding range AWG: 16 to 14Color: BlueOuter diameter dimension (mm): 11.7Stud diameter (mm): 6.9Overall length ( mm): 28.4Inner dimension (mm): 4.3Maximum operating temperature ( ): 105Rated voltage (V): 600Recommended stripping length (mm): 7.9Mounting screw: M6Recommended stripping length: 7.9mm
Specification2
Material/Finish Terminal: Copper Insulator: Vinyl
Set contents/accessories
caution
