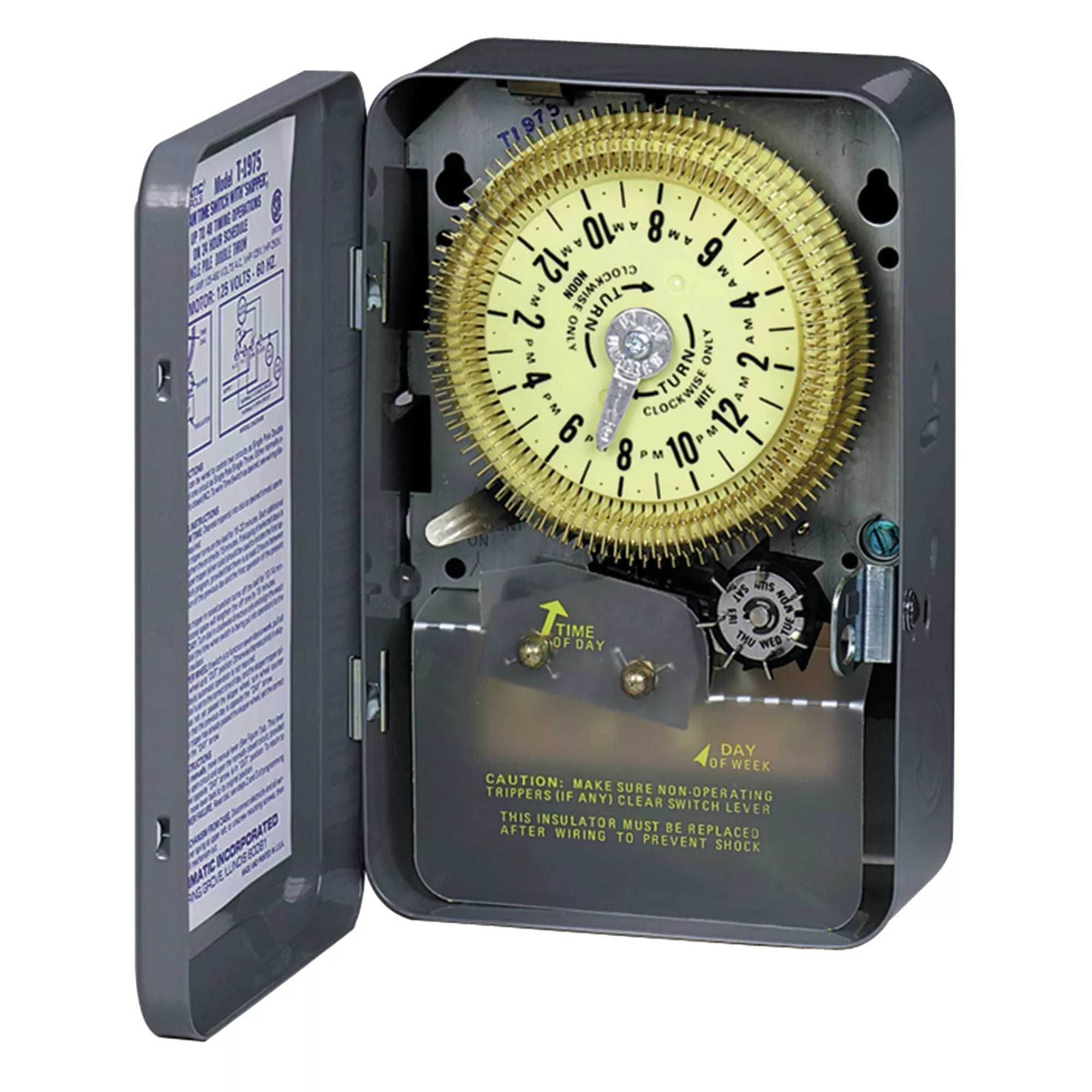

T1970 Series mechanical time switches provide up to 96 operations (48 ON/48 OFF) every 24 hours with minimum ON/OFF times of 15 minutes. These time switches are ideal in areas where shorter duration ON/OFF times are required. Skipper™ models enable operations to be omitted on selected day(s) of the week. Trippers slide Up /Down in dial slots for fast, accurate setting.
Provides up to 96 operations (48 ON/48 OFF) every 24 hours
Models with skipper wheel allow for operations to be omitted on selected days of the week
15-minute intervals
Captive trippers slide in and out of dial for fast, accurate setting
Specifications
Brand Name
Intermatic
Item Name
Timer Control Switch
Type
Electromechanical
Voltage Rating
125 VAC
Amperage Rating
20 A at 125/208 – 277/480 VAC
Wattage
3 W
HP Rating
1/2 hp at 125 VAC, 1 hp at 250 VAC
Time Setting Range
24 hr
Number of Poles
1
Contact Configuration
SPDT – 1 NO/1 NC
Frequency Rating
60 Hz
Color
Gray
Dimensions
87.3 x 130.2 x 200.0 mm
Enclosure Type
NEMA 1
Mounting
Wall
Temperature Rating
-40 to 104 °F
For Use With
Filters, heaters
Standards
cCSAus Certified
Application
Indoor
UPC
078275192010
