Product Description

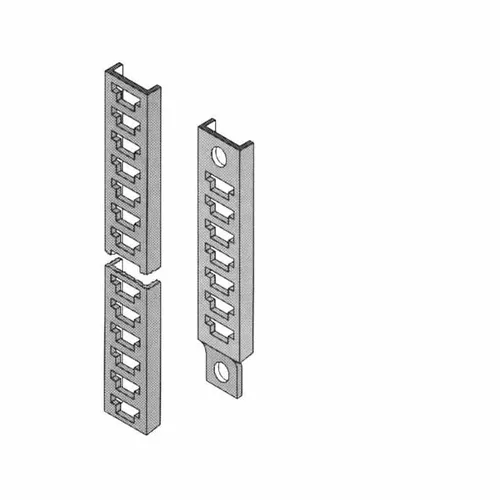

INWESCO 10A11 CABLE RACK 18-HOLE 30 INCH FOR MANHOLE NEWCable racks support cable runs in manholes and vaults.FEATURES:HOT DIP GALVANIZED per ASTM A123 / A153Manufactured from 1-1/2 x 9/16 x 3/16-inch hot-rolled steel channelT-slots spaced at 1-1/2-inch8, 14, and 18-hole racks available with mounting slots at each end that interlock into another rackRacks without mounting slots are mounted through T-slotsUse cable hooks 10A35 through 10A39, 10C38, 10A60, 10B60, 10A61, and 10B61 with these racksPLEASE CONTACT OUR FACTORY FOR THE FOLLOWING:Sizes not shownStainless steel racksPlastic-coated racks hot-dip galvanized prior to coatingPRODUCT DIMENSIONS AND SPECIFICATIONS:Common sizes are displayed.Contact a sales representative if the size is not shown or for specific product drawings.Catalog No. of Support HolesOverall LengthMounting Hole SpacingAppx. Shipping Wt. Lbs. per 100 Pcs.10A05 8 15 13-1/2 139 10B05 8 11-3/4119 10A07 12 17-3/4179 10A08 14 24 22-1/2 230 10B08 14 20-3/4210 10C08 15 22-1/4225 10A09 16 23-3/4240 10A11 18 30 28-1/2 290 10G11 18 26-3/4270 10B11 19 28-1/4285 10C11 20 29-3/4300 10D11 21 31-1/4316 10E11 22 32-3/4331 10F11 23 34-1/4346 10A12 24 35-3/4361 10B12 25 37-1/4376 10A13 27 40-1/4407 10B13 28 41-3/4422 10A14 32 47-3/4482 10A15 35 52-1/4528 10A16 3755-1/4 55810A173958-1/4 58810A184059-3/4 60310A194364-1/4 64910A224770-1/4 71010A245176-1/4 77010A255480-3/4 81610A286495-3/4 96710B286597-1/4 98210A3069103-1/4 104310A3280120 121010A34160240 2420
