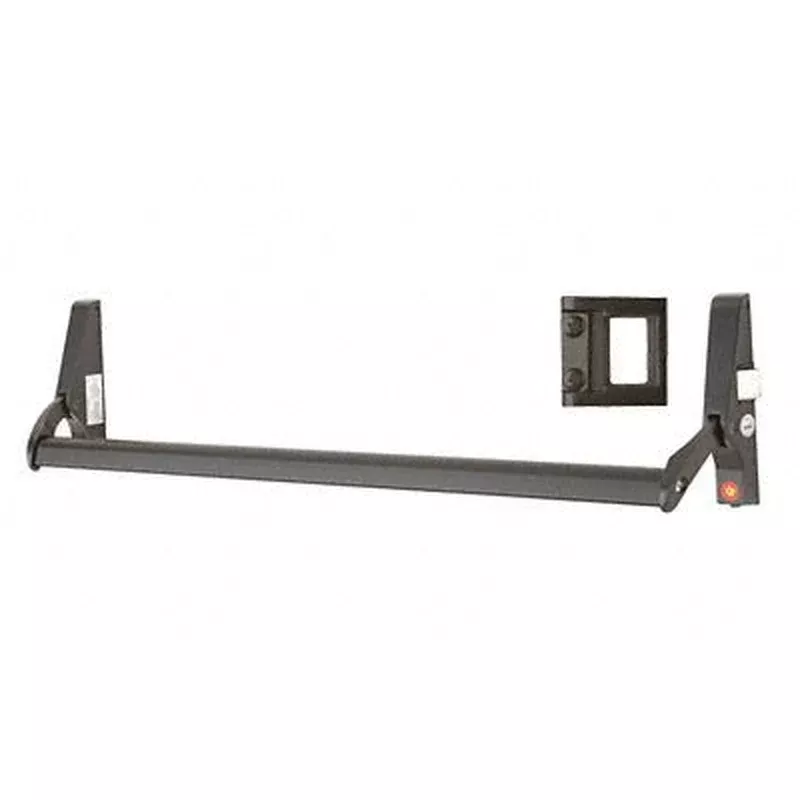

The Jackson 10 Series 48″ Rim Panic Exit Device is designed to provide reliable life-safety egress for commercial doors. Built for right hand reverse bevel (RHR) applications, this crossbar-style panic device ensures smooth and dependable operation in high-traffic environments such as storefronts, schools, and commercial buildings.
Sold by: EachBrand: JacksonSeries: 10Model: 1095Finish/Color: Dark BronzeHanding: Right Hand Reverse Bevel (RHR)Door Width: 48″ (1219 mm)Door Thickness: 1-3/4″ (44.5 mm)Panic Type: RimStrike Type: ‘S’ TypePanic Bar Projection: 4-5/8″ (117.5 mm)Panic Bar Width: 48″ (Field Sizeable)Dogging: Screwdriver OperatedMaterial – Housing: AluminumMaterial – Internal Components: Stainless & Hardened SteelMaterial – Latch & Strike: Sintered SteelMinimum Stile Width: 1-3/4″UL Listed: YesCertification: ANSI/BHMA 156.3Application: Aluminum, Wood, Hollow Metal DoorsIncludes: Mounting HardwarePart Number: CH-603BR-RHR
Constructed with a high-strength aluminum body and reinforced with stainless and hardened steel internal components, this exit device delivers long-lasting durability and consistent performance. The dark bronze finish provides a professional architectural appearance, while concealed fasteners enhance both security and aesthetics. The contoured 48″ crossbar is field sizeable and designed to fit doors up to 84″ in height.
Featuring a rim-type configuration with an ‘S’ type strike, this device includes screwdriver-operated dogging for convenient hold-open capability and meets ANSI/BHMA 156.3 standards. Suitable for aluminum, wood, or hollow metal doors, it offers a dependable and maintenance-free solution for code-compliant exit hardware.
