Product Description

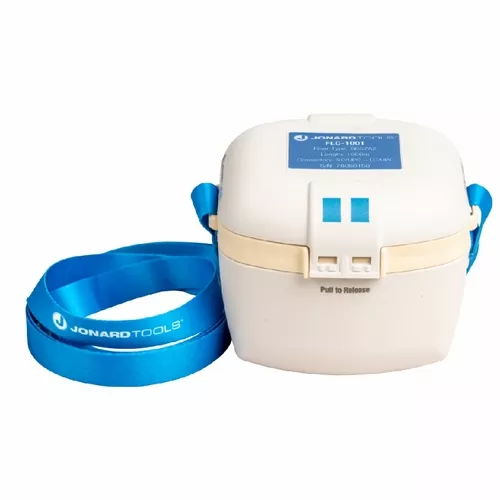

JONARD FLC-1001 Singlemode Fiber Optic Launch Cable, 1000 m, SC/UPC-LC/UPC 810053351871 Singlemode Fiber Optic Launch Cable, 1000 m, SC/UPC-LC/UPC Compact housing and shoulder strap make this perfect for on-the-go use 6.56 ft (2 m) long pigtails are terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage Polishing types are color coded for quick and easy identification of the launch cable Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racksSpecificationsCable Length3281 ft (1000 m)Connector TypesSC/UPC, LC/UPCInput/Output Length4.9 ft (1.5 m)Max Insertion Loss @ 1310 nm= 0.35 dB/kmMax Insertion Loss @ 1550 nm= 0.22 dB/kmMax Insertion Loss @ 800 nm= 2.50 dB/kmMax Insertion Loss @ 1300 nm= 0.70 dB/kmSM Connector Insertion Loss= 0.1 dBMM Connector Insertion Loss= 0.15 dBReturn LossRL = 65 dB (APC); RL = 55 dB (UPC)Product Main ColorWhiteDimensions3.75 in x 3.75 in x 3.46 in (9.53 cm x 9.53 cm x 8.79 cm)Weight 0.78 lb (353.80 g)UPC 810053351871
