Product Description

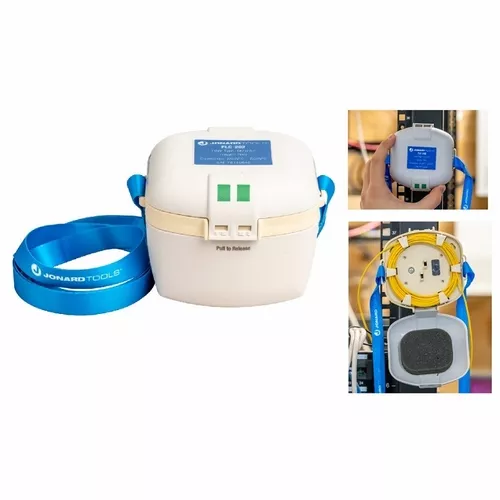

JONARD FLC-202 Singlemode Fiber Optic Launch Cable, 20 m, SC/APC-SC/APC 810053352311 Singlemode Fiber Optic Launch Cable, 20 m, SC/APC-SC/APC Compact housing and shoulder strap make this perfect for on-the-go use Terminated with an SC/UPC connector on one side and an SC/APC connector on the other side for versatility Polishing types are color coded for quick and easy identification of the launch cable Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks 65.6 ft (20 m) length of fiber is perfect for most OTDR testing applicationsSpecificationsCable Length65.62 ft (20 m)Connector TypesSC/APC, SC/APCInput/Output Length4.9 ft (1.5 m)Max Insertion Loss @ 1310 nm= 0.35 dB/kmMax Insertion Loss @ 1550 nm= 0.22 dB/kmMax Insertion Loss @ 800 nm= 2.50 dB/kmMax Insertion Loss @ 1300 nm= 0.70 dB/kmSM Connector Insertion Loss= 0.1 dBMM Connector Insertion Loss= 0.15 dBReturn LossRL = 65 dB (APC); RL = 55 dB (UPC)Dimensions3.75 in x 3.75 in x 3.46 in (9.53 cm x 9.53 cm x 8.79 cm)UPC 810053352311
