Product Description

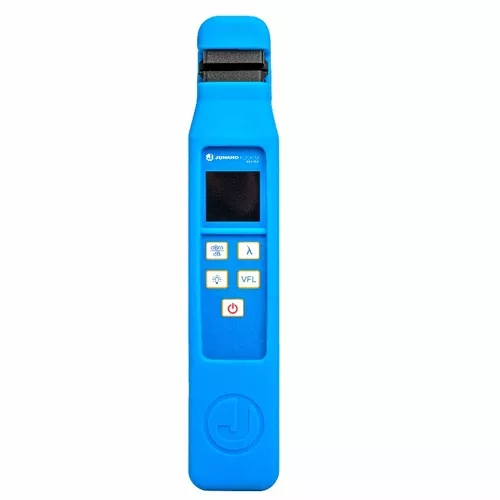

JONARD OFI-100 Advanced Optical Fiber Identifier 810053351529JONARD OFI-100 Advanced Optical Fiber Identifier 810053351529Advanced Optical Fiber Identifier w/ Power Meter & VFLDesigned to quickly identify the direction of light beingtransmitted in the fiber and display the relative core power without damaging the fiber. This fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network and includes a built-in VFL and Power Meter for convenience. This fiber identifier also features the following:Efficiently identifies the traffic direction and frequency (270Hz, 1KHz, 2KHz) with an audible warningLCD clearly displays the relative core power, signal direction, and battery lifeReversible adapter has one side for 2 mm and 3 mm fiber optic cables, and the opposite side is used for 250 祄 and 900祄 fiberBuilt-in VFL allows you to find faults in fiber cables quickly and easilyBuilt-in Power Meter can be used to measure power using 850, 1300, 1310, 1490, 1550, and 1625 nm wavelengthsProtective rubber sleeve prevents damage from accidental dropsKit Includes:Advanced Fiber IdentifierAdapter for 2.0/3.0 mm & 250/900 nm fibers(2) AA BatteriesCarrying pouchSpecificationsIdentified Wavelength Range800-1700 nmIdentified Signal TypeCW, 270Hz?5%,1kHz?5%,2kHz?5%Detector Type?1mm InGaAsAdapter Type?0.25 (Applicable for Bare Fiber), ?0.9, ?2.0 , and ?3.0Signal DirectionColor DisplaySignal Direction Test Range-46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)Signal Frequency Display270 Hz, 1 kHz, 2 kHzInsertion Loss1.0 dB (?0.25 & ?0.9), 1.5 dB (?2.0 & ?3.0)Battery Type(2) AADimensions9 in x 1 in x 1 in (22.86 cm x 2.54 cm x 2.54 cm)Weight 0.59 lb (267.86 g)UPC 810053351529
