Product Description

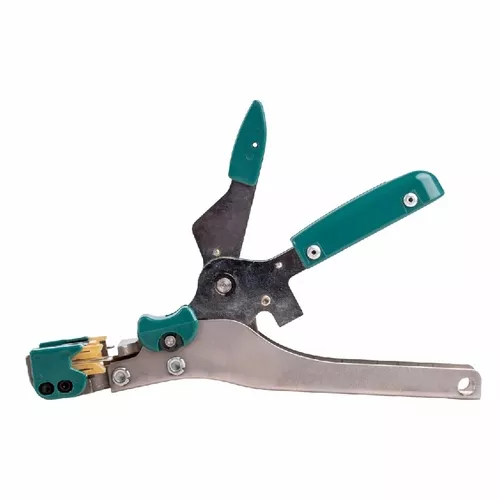

JONARD PIC-G Picabond Crimping Tool UPC 810053350652JONARD PIC-G Picabond Crimping Tool UPC 810053350652This VS-3 style hand tool is designed to crimp various AMP Picabond connectors onto 19 – 28 AWG wires. This crimper also features the following:Moveable anvil and two fixed dies crimp the connector perfectly every timeRubber wire supports hold wire in place while crimpingBuilt-in wire cutter locates the connector on the anvil and cuts excess wire during crimpingUnique moving handle pushes connectors into the crimping dies, ensuring highly uniform connections with every crimpFixed handle provides additional support during crimpingCompatible with AMP Picabond Connectors with the following stripe colors: Orange, Green, Purple, Green/Amber, Purple/Amber, Red, and YellowSpecificationsConnector TypeAMP Picabond Connectors (Striped Connectors)Compatible Stripe ColorsOrange, Green, Purple, Green/Amber, Purple/Amber, Red, & YellowWire Range28 AWG – 19 AWGTool Dimensions7.75″ x 1.8″ x 2.6″ (19.7 cm x 4.6 cm x 6.6 cm)Dimensions w/ Case10.5″ x 7.5″ x 2.5″ (26.67 cm x 19.05 cm x 6.35 cm)Dimensions10.5 in x 7.5 in x 2.5 in (26.67 cm x 19.05 cm x 6.35 cm)Weight2.06 lb (935.24 g)UPC 810053350652
