Product Description

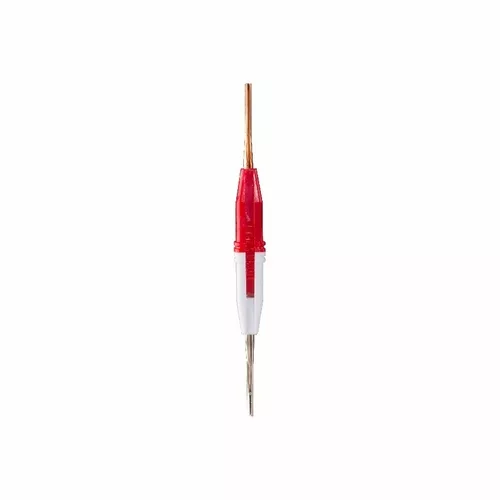

JONARDAR-910672 Insertion And Extraction Tool 811490012370Compatible with nearly all connectors conforming to M81969/1-02, this tool is perfect for inserting and extracting size 20 front release contacts made by most manufacturers. This insertion tool features the following:Probes constructed from brass to prevent damage to contactsHousing made from color-coded ABS: Red side is for insertion and white side is for extractionFor use on TE Connectivity Amplimite series HDP-20 plugs and pins, including the following:215712-1 Plug 15 POS Crimp Snap 215711-1 Plug 9 POS Crimp Snap 1218266-1 Pin 18 AWG Gold Crimp 194081-1 Pin 1.04 mm without Louver Band 205089-2 D-Sub Pin 20-24 AWG CrimpSpecificationsFunctionInsertion, ExtractionContact Size20 (0.040″)StandardsM81969/1-02Length3.875″ (9.84 cm)Weight0.053 lb (24.04 g)UPC No.811490012370
