Product Description

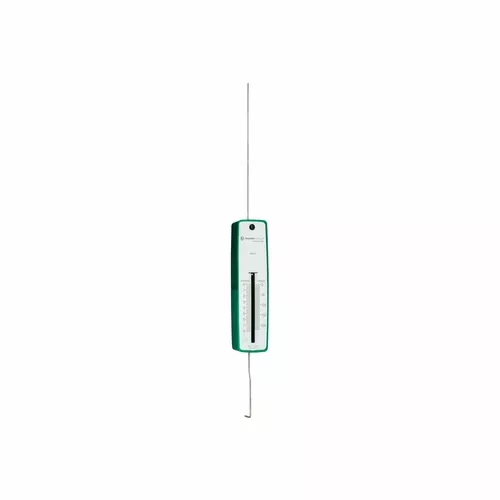

JONARDGPP-8 Gauge, Push-Pull 0-220 Gr/0-8 Oz 811490011458The Jonard Tools Push-Pull Force Gauges are economically constructed and made of high impact polystyrene casing. This force gauge features the following:Simplified in construction yet accurately measures push-pull forcesThese force gauges can also be used to test belt tension in ATMsGauge is graduated in two scales: grams and ouncesIdeal for field service use and applications requiring gauges with maintenance-free operationPrecision springs are individually calibrated and checked with dead weightsScales have full accuracy as the permanent calibration is held to ± 1 graduationAccuracy: 1 graduation, maximum capacity: 8 oz (220 g), metric capacity: 220 g x 5 gSpecificationsGauge FaceFlatTip Diameter0.063″ (1.60 mm)Accuracy+- 1 graduationGraduation0.25 ozMax Capacity8 oz (220 g)Metric Capacity220 g x 5 gHeight1″ (25.4 mm)Width1 1/2″ (38.1 mm)Length14″ (355.6 mm)Weight0.166 lb (75.30 g)UPC No.811490011458
