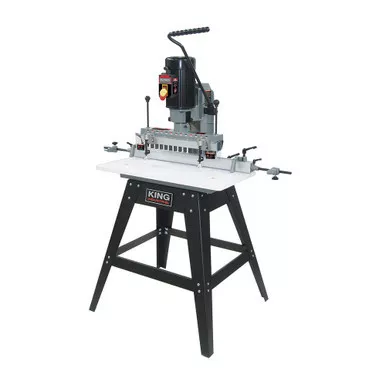

Description:
- Powerful 1.5 HP, 110V motor
- Designed for simultaneous multi-hole line boring or drilling, ideal for cabinet makers or shelving applications
- 13 spindles spaced 32mm (1-1/4″) on centre, allowing drilling up to 13 evenly spaced holes
- Fully adjustable aluminum fence with work stops at each end to line up workpiece from the right or left to perform parallel boring patterns
- Indexing pins allow correct spindle alignment for resuming line boring operations in long workpieces
- Large 31-1/2″ x 15-3/4″ melamine table top
- Comes complete with open steel stand
Specifications:
- NUMBER OF SPINDLES: 13
- COLLET SIZE: 3/8″ (10 mm)
- SPINDLE CENTRES: 32 mm (1-1/4″)
- SPINDLE SPEED: 3,500 RPM
- TABLE SIZE: 31-1/2″ x 15-3/4″
- MAXIMUM DEPTH OF STROKE: 2-1/2″
- MAXIMUM STOCK THICKNESS: 5-1/2″
- MOTOR: 1-1/2 HP, 12.6 Amp.
- VOLTAGE: 110V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 76″ x 28-1/2″ x 67″ / 215 lbs
