Description:
- Powerful 2 HP motor
- 3 knifes cutterhead allows rapid cutting while producing a superior finish
- Precision ground cast-iron tables
- One piece welded cabinet stand has built-in 4″ dust chute for dust collector hook-up
- Handwheel actuated infeed table with lock handle, for quick easy height adjustment
- Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place

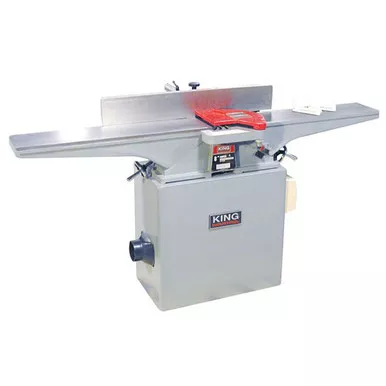

- Fence for KC-203C has a Rack and Pinion fine adjustment system
- Includes 2 safety push blocks
Specifications:
- CAPACITY: 8″
- CUTTERHEAD SPEED: 5,000 RPM
- DIAMETER OF THE CUTTERHEAD: 2-1/2″
- RABBETING CAPACITY: 1/2″ x 8″
- TABLE SIZE: 9″ x 73″
- FENCE SIZE: 35″ x 5″
- MOTOR: 9 Amp. @ 220V
- VOLTAGE: 220V, 1 phase, 60 Hz
- DIMENSIONS (LXWXH) / WEIGHT: 73″ x 33″ x 38″ / 410 lbs
