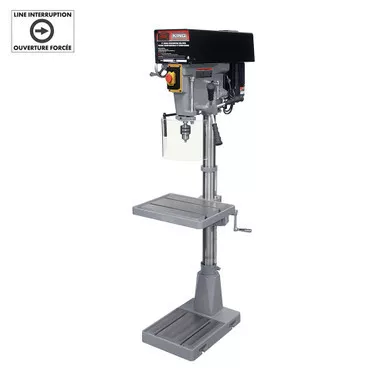

Description:
- Powerful 1 HP motor
- Long 6” stroke allows this drill press to drill deeper than most
- Safety guard with limit switch protection
- E-stop 2 step activation safety switch with line voltage
- interruption in case of power failure
- Variable speed handwheel sets the spindle speed using asymmetric drive system
- Digital readout for precise spindle speed
- Rack pivot collar allows the table to easily be swung out of the way without catching or twisting
- Massive cast-iron base, table and head for reduced vibrations during operations
- Machine and balanced cast-iron pulleys
- Comes with 5/8″ drill chuck, chuck key, knock-out wedge and adjustment hex. keys
Specifications:
- CAPACITY: 5/8″
- CHUCK SIZE: 5/8″
- SWING: 15″
- MAX. DISTANCE CHUCK TO COLUMN: 7-1/2″
- MAX. DISTANCE CHUCK TO TABLE: 27-1/2″
- STROKE: 6″
- TABLE SIZE: 18″ x 14″
- SPINDLE TAPER: JT 3
- VARIABLE SPEEDS: 400 – 5,000 RPM
- TABLE T-SLOTS: 9/16″
