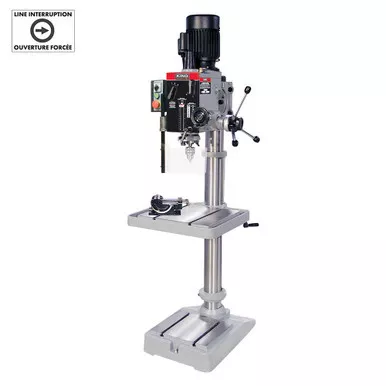

Description:
- Safety guard with limit switch protection
- Magnetic line interruption switch needs a restart after a power failure
- Spindle is equipped with four heavy- duty tapered roller bearings
- Powerful single phase 1.5 HP motor
- Forward and reverse switch
- Comes complete with 1/2″ chuck with key, 3-1/2″ angle vise and safety guard
Specifications:
- DRILL CAPACITY: 1-1/4″
- MAX. DISTANCE SPINDLE NOSE TO TABLE: 22″
- MAX. DISTANCE SPINDLE NOSE TO BASE: 47″
- SWING: 20-7/16″
- SPINDLE TAPER: MT 3
- SPINDLE STROKE: 5″
- DIAMETER OF COLUMN: 4-1/2″
- SPEEDS: 6 (60-1,500) RPM
- 4FACE MILL CAPACITY: 4″
- END MILL CAPACITY: 3/4″
