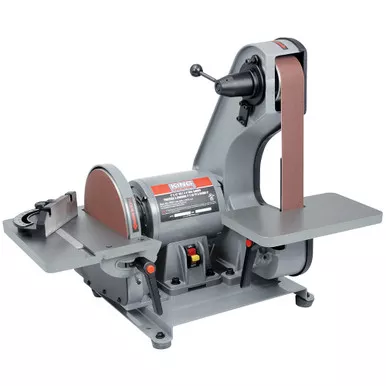

Description:
- Powerful 1 HP, 6.2 Amp direct drive motor
- Both a 1″ and a 2″ sanding belt can be installed on this belt sander for greater versatility
- Handles all of your finishing operations including sanding, surfacing, grinding, cleaning and deburring on wood, metal and plastics
- Solid cast-iron body and steel base add stability and minimize vibration
- Solid cast-iron belt table and disc table with T-slot tilts from 0Ëš to 45Ëš
- Integral 1-1/2″ belt and disc dust ports for shop vacuum hook-up
- Adjustable/removable belt platen(s) allow sanding of curves or oddly shaped material
- Comes with 1″ x 42″ sanding belt, 2″ x 42″ sanding belt, 1″ & 2″ belt platens, 2 x 8″ adhesive sanding discs, miter gauge and adjustment hex. keys
Specifications:
- MODEL – KC-770FX
- BELT – 1″ x 42″ & 2″ x 42″
- BELT SPEED – 3,100 SFPM
- DISC – 8″
- DISC SPEED – 3,450 RPM
- MOTOR – 1 HP, 6.2 Amp.
- VOLTAGE – 120V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT – 22-3/8″ x 19-1/2″ x 20-1/2″ / 61 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT – 16-1/2″ x 16″ x 23-1/4″ / 65 lbs
- UPC – 7 72995 01746 1
