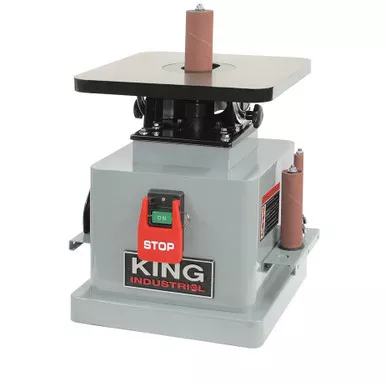

Description:
- Rotating and oscillating effect ensures exceptional finishing results
- Precision ground heavy-duty cast-iron table
- Table can be tilted downwards up to a maximum of 45° to allow the sanding of beveled parts
- Graduated bevel scale for accurate reading of the degree of tilt
- On-board side mounted spindle and table insert storage
- A plastic 2″ dust hood is supplied under the table for connection to a dust collector
- Comes standard with 3 spindles (1/4″, 1/2″ and 5/8″) and 2 drums (1-1/2″ and 2″)
Specifications:
- OSCILLATIONS PER MINUTE: 29
- OSCILLATIONS STROKE: 15/16″
- SPINDLE DRUM DIAMETER: 1-1/2″ – 2″
- SPINDLE DIAMETER: 1/4″ – 1/2″ – 5/8″
- SPINDLE SPEED: 1,720 RPM
- TABLE SIZE: 14-3/4″ x 14-3/4″
- DUST HOOD OUTLET DIAMETER: 2″
- VOLTAGE: 120V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 17-1/2″ x 14-3/4″ x 18-7/8″ / 77 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 17″ x 17″ x 21″ / 82 lbs
