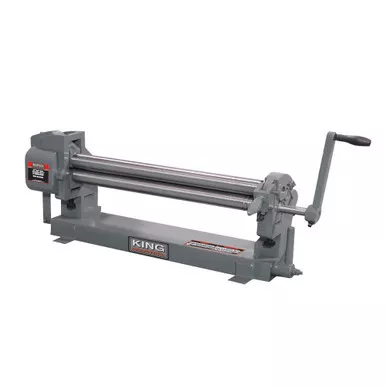

Description:
- Heavy cast-iron construction with front mounted handle for easy placement and release of workpiece
- Precision-turned tool steel rolls with wire grooves are ground and polished to offer accuracy and stability
- Hardened steel gearing
- Large roll adjusting screws facilitate lifting the upper roll for easy removal of material
Specifications:
- MAXIMUM LENGTH: 36″
- CAPACITY (MILD STEEL): 22 Gauge
- DIAMETER OF ROLLS: 2″
- MINIMUM FORMING RADIUS: 1″
- WIRE GROOVE DIAMETERS: 5/32″, 15/64″, 5/16″
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 55″ x 12″ x 19″ / 176 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 52-3/4″ x 12-1/2″ x 19-5″ / 8″ / 215 lbs
