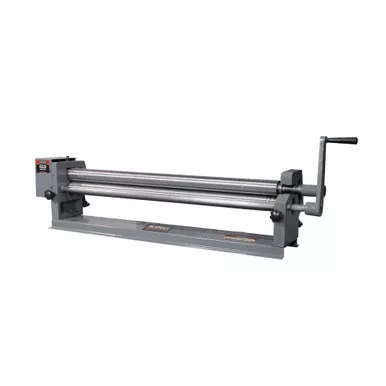

Description:
- Heavy cast-iron construction with front mounted handle for easy placement and release of workpiece
- Precision-turned tool steel rolls with wire grooves are ground and polished to offer accuracy and stability
- Hardened steel gearing
- Large roll adjusting screws facilitate lifting the upper roll for easy removal of material
Specifications:
- MAXIMUM LENGTH: 50″
- CAPACITY (MILD STEEL): 16 Gauge
- DIAMETER OF ROLLS: 3″
- MINIMUM FORMING RADIUS: 1-1/2″
- WIRE GROOVE DIAMETERS: 9/32″, 23/64″, 7/16″
- GEARING RATIO: 1:1
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 72″ x 14″ x 21″ / 540 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 68-7/8″ x 19-5/8″ x 23-5/8″ / 615 lbs
