Description:

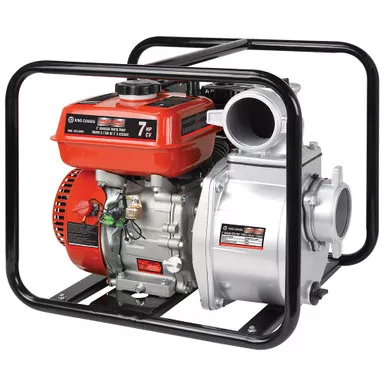

- Powerful 7 HP, 4 stroke, air cooled, OHV gasoline engine
- 92′ total head lift (total height at sea level, to which water can be raised above original water level)
- Oil sensor shuts off engine when oil level is low
- Self priming pump for easy operation
- Cast iron impeller and aluminum alloy high pressure pump body casting
- Easy start recoil starter
- Heavy-duty roll cage protects engine and pump
- Comes with 3 wire clamps, 4 hose adapters, 4 rubber gaskets, strainer basket and strainer basket adapter
Specifications:
- MODEL – KCG-3WPG
- INLET/OUTLET DIAMETER – 3″ NPT
- MAXIMUN PUMP CAPACITY – 966 L/min. (255 GPM)
- TOTAL HEAD LIFT – 92 ft.
- SUCTION HEAD LIFT – 26 ft.
- ENGINE (OHV) – 7 HP
- ENGINE SPEED – 3,600 RPM
- DISPLACEMENT (CC) – 208
- FUEL – Unleaded Gasoline
- FUEL TANK (L) – 3.6
- OIL CAPACITY (L) – 0.6
- STARTING SYSTEM – Recoil
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT – 19-3/4″ x 16″ x 17″ / 55 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT – 19-7/8″ x 16-3/8″ x 17-3/8″ / 60 lbs
- UPC – 7 72995 01227 5
