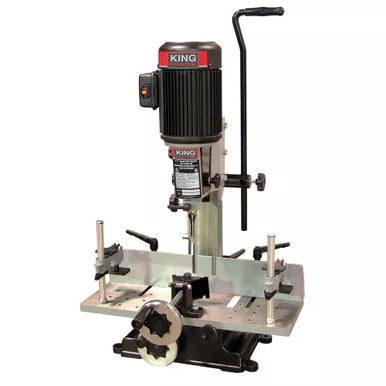

Description:
- Powerful 3/4 HP enclosed fan cooled ribbed body motor for long life and trouble-free operation
- Longitudinal sliding table with locking system prevents unnecessary repositionning and reclamping of the workpiece
- Gas head cylinder for smooth and controled cuts
- Rack and pinion gears move entire head for maximum leverage and positive feed control
- Heavy-duty precision machined cast-iron construction
- Includes sleeve adaptors which accept 5/8″ and 3/4″ diameter chisel shanks
- Adjustable depth and height stops
- Comes complete with mortising chisel and bit set (1/4″, 5/16″, 3/8″ and 1/2″), 1/2″ chuck and key, column mounted hold down, pair of 9 positions table hold downs and quick release vise
Specifications:
- CHISEL CAPACITY: 1/4″ – 5/8″
- CHUCK CAPACITY: 1/2″
- MAXIMUM CHISEL STROKE: 6-1/2″
- MAXIMUM DISTANCE FENCE TO CENTER CHISEL: 3″
- MAX. DISTANCE CHISEL TO TABLE (HEAD EXTENDED): 9-1/2″
- UNDER TABLE HOLD DOWN CAPACITY: 5-3/4″
- SLIDING TABLE SIZE: 20″ x 8-1/4″
- SLIDING TABLE TRAVEL (RIGHT-LEFT): 16″
- FENCE SIZE: 20″ x 3-9/16″
- SPEED: 1,720 RPM
