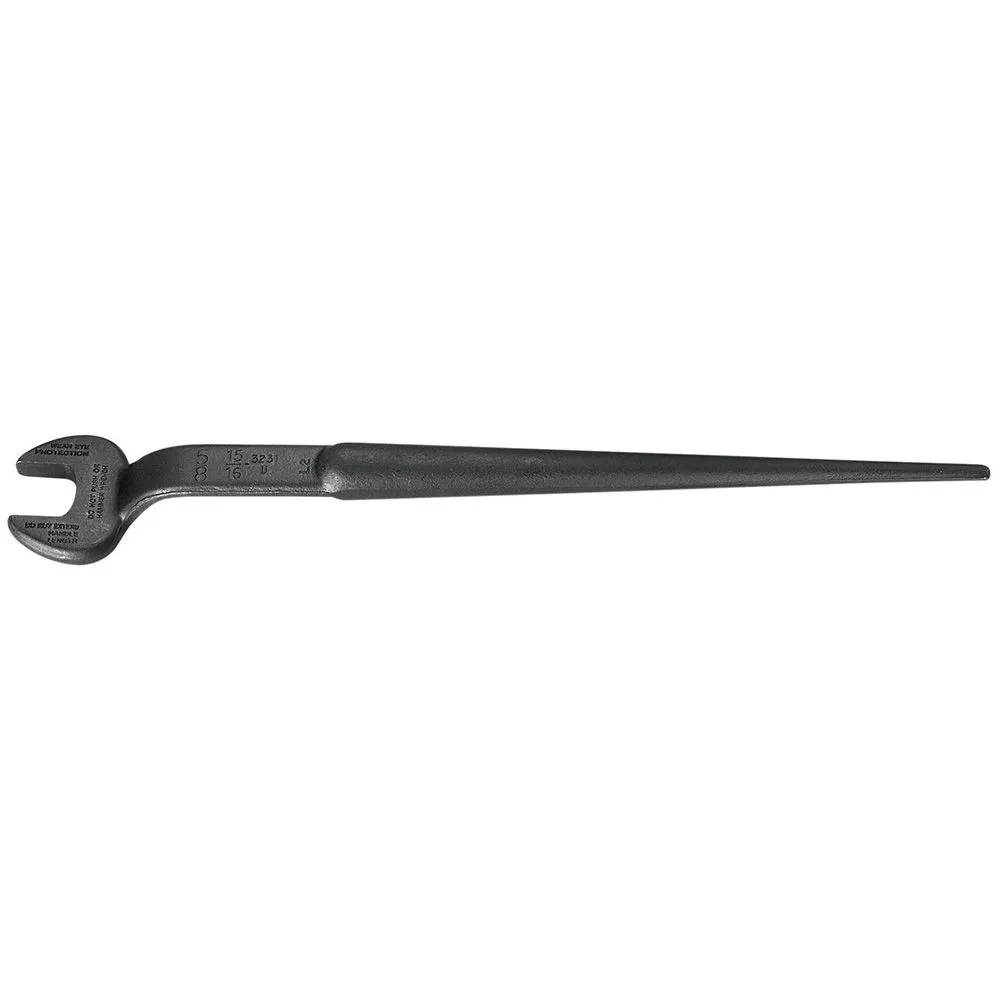

Erection wrench, 3/4” Bolt, for U.S. regular nut with overall length 16-5/8” (422 mm). head width: 2-1/2” (64 mm), nominal opening: 1-1/8” (29 mm) and taper diameter: 1” (25 mm) to 1/4” (6 mm). Forged from select alloy steel to withstand high-leverage and heavy loads. Extra-heavy-duty head area gives maximum strength and durability. Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding.Extra-large hub area works on larger diameter holes better than other wrenches. Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification.
Nominal Opening: 1-1/8-Inch (28.6 mm)
Specifications
Brand Name
Klein Tools
Item Name
Erection Wrench
Type
Single, Extra Heavy Duty
Jaw Capacity
1-1/8 in
Material
Forged Alloy Steel
Measuring System
SAE
Open End Width
2-1/2 in
Length
16-5/8 in
Handle Type
Tapered
Handle Size
1-1/4 in
Finish
Black Oxide,Rust Preventative
Weight
2 lb
Application
For 3/4 in Bolt and US Regular Nut
UPC
092644680175
