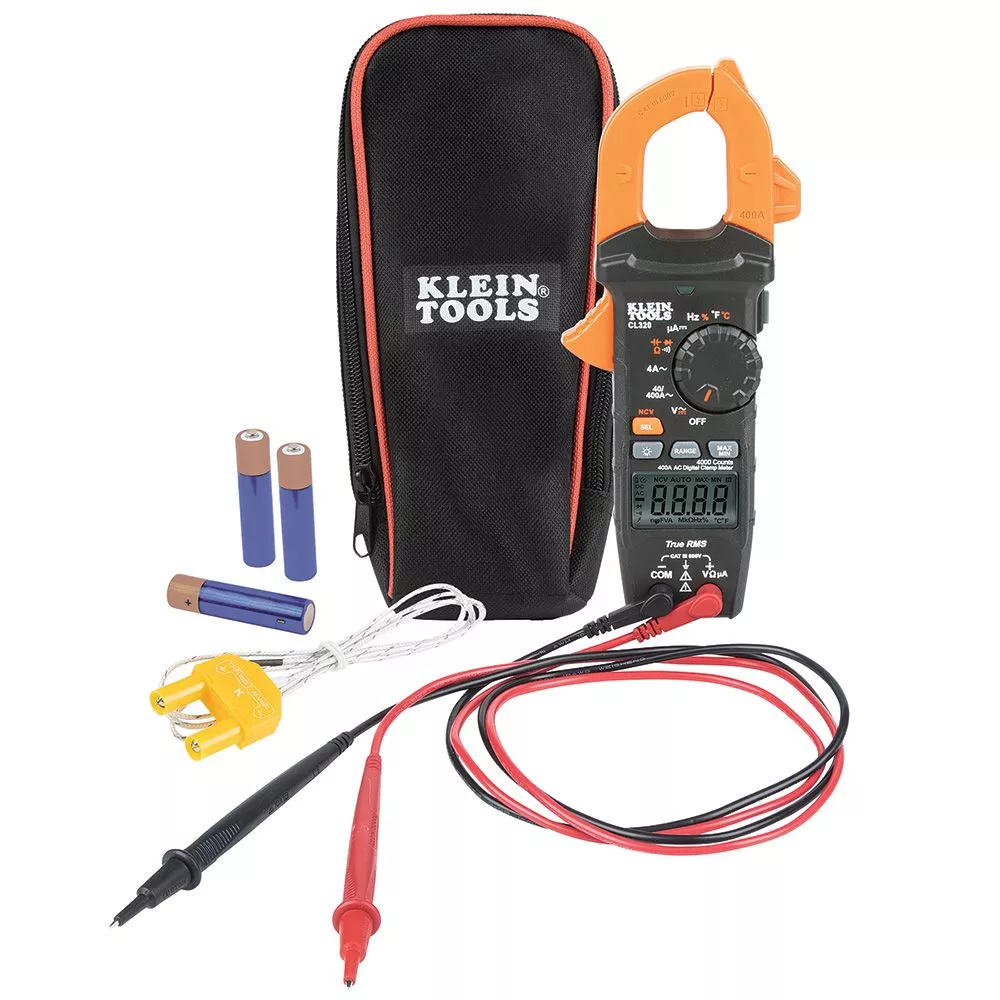

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Auto-Range, Data Hold, and Max/Min value
Specifications
Brand Name
Klein Tools
Item Name
Digital Clamp Meter
Type
TRMS
Jaw Capacity
1.61 in
Display
4000 Count Backlit LCD
AC Voltage Range
600 VAC
DC Voltage Range
600 VDC
Capacitance
4000 µF
Resistance
40 mO
Audible Continuity
Yes
Diode Test
Yes
Temperature Range
-40 to 1832 °F
Battery Type
(3) AAA
Amperage Range
400 A
Frequency Range
10 Hz -1 MHz
Dimensions
8.45 in L x 3.51 in W x 1.51 in H
Weight
11 oz
Includes
Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries
Standards
Category III 600 V, Class 2, Double Insulation Safety Rating, CE Certified
Application
Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, Frequency, DC Micro-Amp, Capacitance, Duty Cycle, Diode Test, and Continuity via Test Leads, and Temperature with Thermocouple
UPC
092644692864
Packages
