The CL360 is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester.PRODUCT FEATURES:-Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy-Measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads-Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (14.7mm)-Non-contact voltage tester integrated into the jaw-Includes a carrying case, test leads and 2 x AAA batteries-Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation-Backlit display for clear readings-Powers off automatically after 15 minutes of non-use to conserve battery life-Rugged Klein ”TOUGH METER” is built to withstand a 9.9-Foot (3m) drop-Low battery indicator and easily accessible battery compartment-Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Tester measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
Wide jaw for measuring current in cables up to 3/0 sizes accommodates cables of diameter up to 0.58-Inch (1.5 cm)
Non-contact voltage tester integrated into the jaw

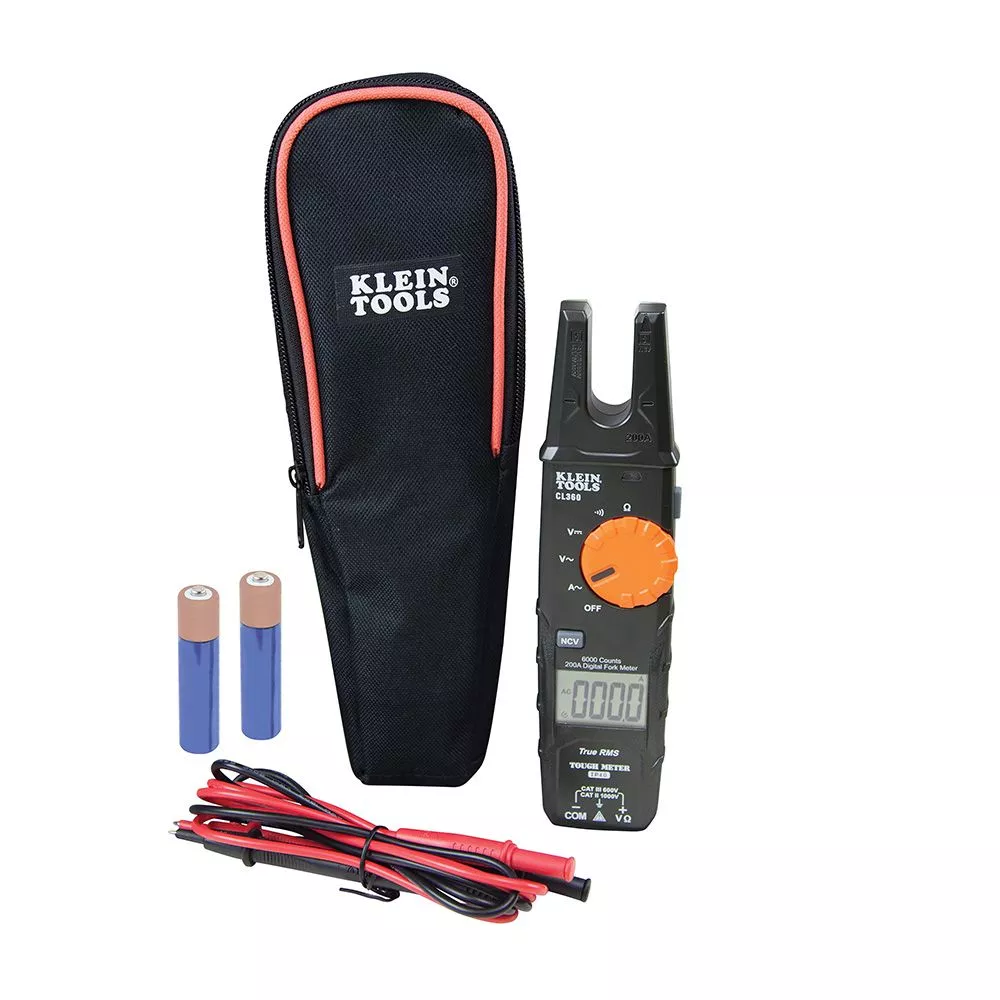

Includes a carrying case, test leads and 2 x AAA batteries
Jaw and Housing: CATIV 600V/CATIII 1000V Electrical: CATIII 600V/CATII 1000V Class 2, Double Insulation
Powers off automatically after 15 minutes of non-use to conserve battery life
Rugged Klein TOUGH METER is built to withstand a 9.9-Foot (3m) drop
Specifications
Brand Name
Klein Tools
Item Name
Clamp Meter
Type
Open Jaw Fork
Display
Backlit LCD
AC Voltage Range
600 V
DC Voltage Range
1000 VDC
Counts
6000
Battery Type
(2) 1.5 V AAA
Amperage Range
200 A
Environmental Conditions
9.9 ft Drop Test
Weight
0.400 lb
Includes
Straight Input Test Leads, (2) 1.5 V AAA Batteries, Carrying Case, Instruction Manual
Standards
CAT IV 600 V, CAT III 1000 V, IP40 Rated
Application
Measures AC Current, AC/DC Voltage, Continuity, Resistance
UPC
092644691140
