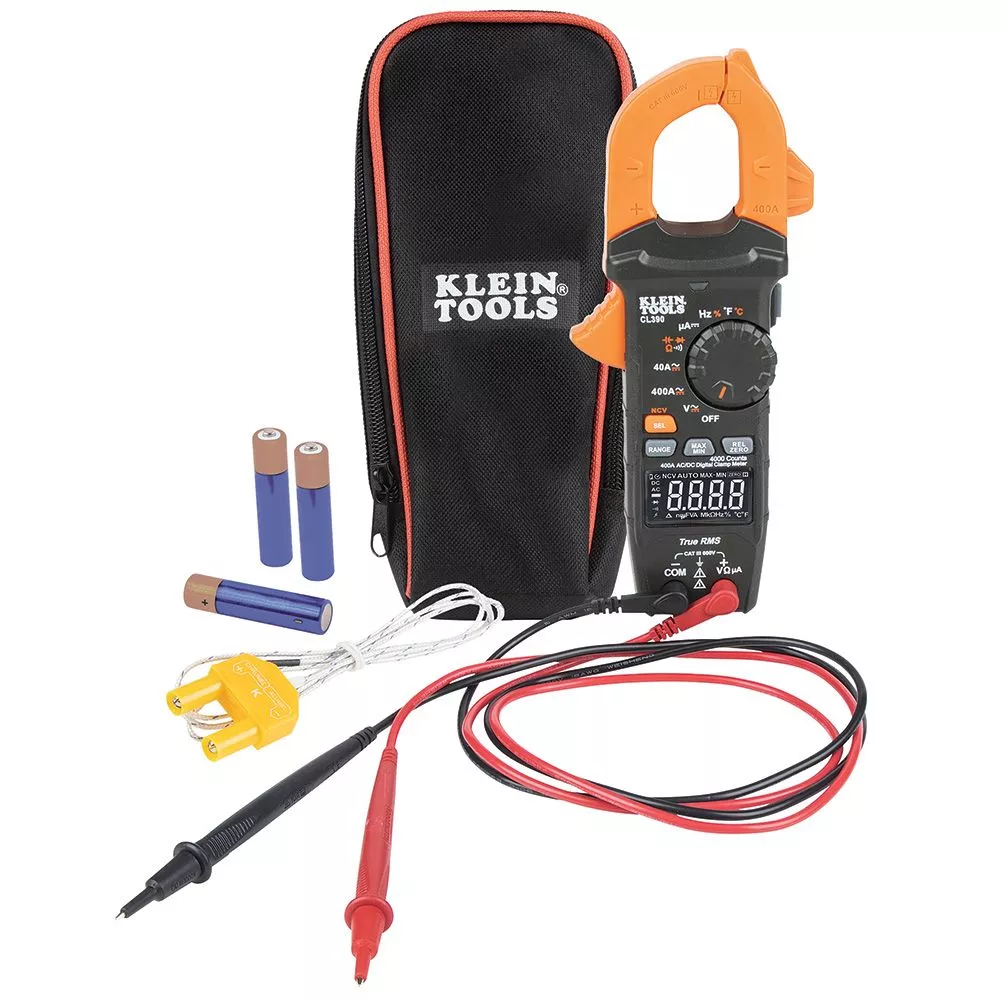

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.
High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Max/Min, Rel/Zero and Data Hold capability
Specifications
Brand Name
Klein Tools
Type
AC/DC Current TRMS Clamp
Display
4000 Count Reverse Contrast LCD
Capacitance
4000 µF
Temperature Range
-40° – 1832°F (-40° – 1000°C)
Battery Type
3 X AAA
Weight
0.516 lb
Standards
CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Application
Capacitance And Tests Diodes Via The Test Leads,Continuity,DC Microamp Current,Duty-cycle,Frequency,Measures Both AC/DC Current And NCVT Via The Clamp And AC/DC Voltage,Resistance,Temperature With Thermocouple
UPC
092644692871
