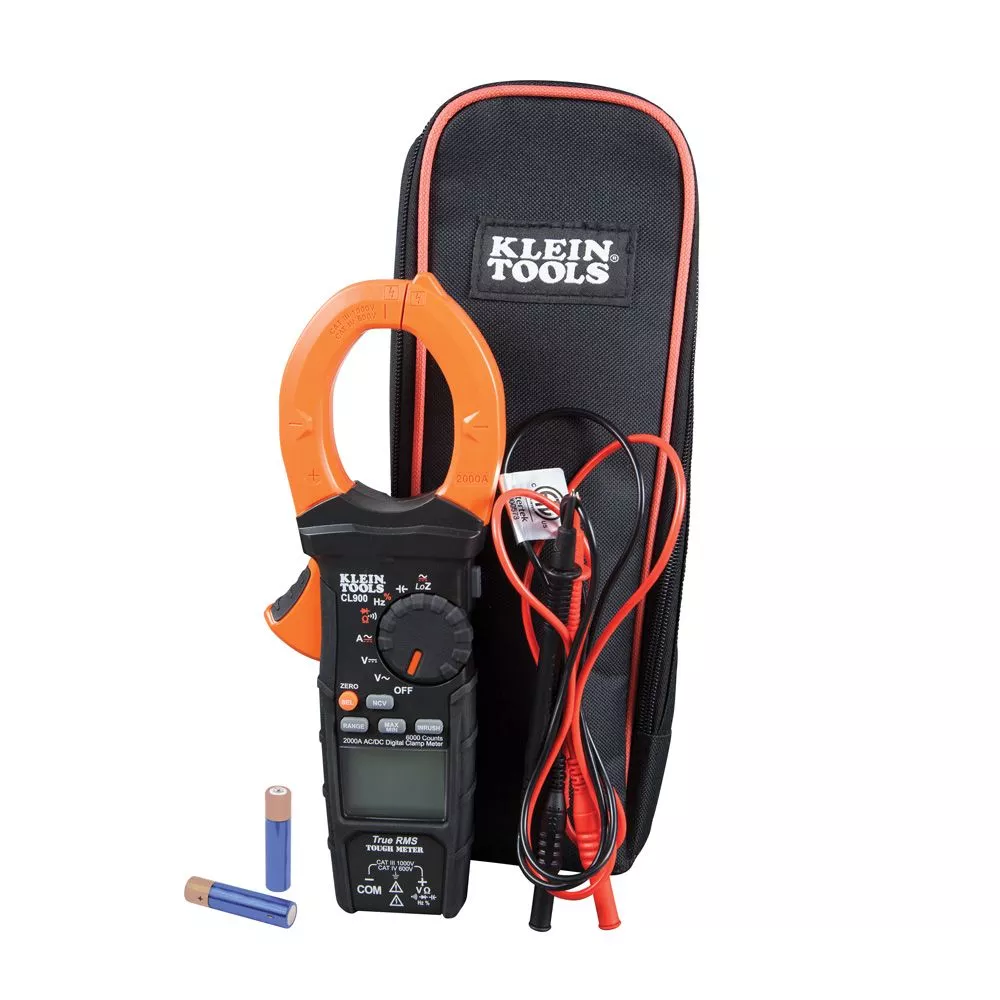

The CL900 is an auto-ranging, true root mean square (TRMS) digital clamp meter that measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.
Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
Rugged Klein TOUGH METER industrial design stands up to jobsite demands built to withstand a 6.6-Foot (2m) drop
Backlit display for clear visibility in environments with low ambient lighting
Dedicated mode for capturing Inrush Current
Non-contact voltage tester integrated into the clamp
Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
Specifications
Brand Name
Klein Tools
Item Name
Clamp Meter
Type
Digital
Display
LCD
AC Voltage Range
1000 VAC
DC Voltage Range
1000 VDC
Capacitance
6000 µF
Counts
6000
Battery Type
(2) AAA
Amperage Range
2000 A
Frequency Range
500 kHz
Weight
1.100 lb
Standards
CAT IV 600 V, CAT III 1000 V
Application
Measures Current To 2000A AC/DC
UPC
092644692352
