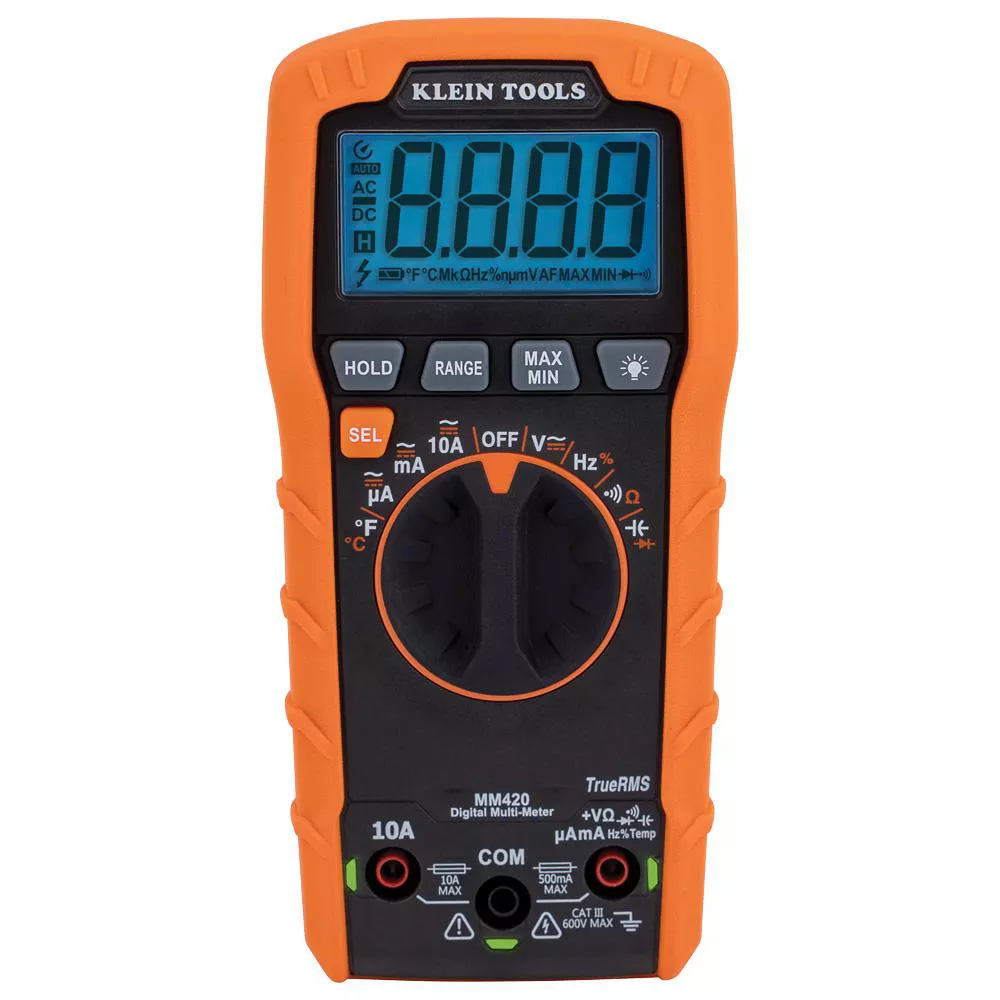

Klein Tools MM420 Multimeter is an auto-ranging, true root mean square (TRMS) multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes
Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
Includes test leads, thermocouple with adapter, batteries and user manual
Specifications
Brand Name
Klein Tools
Item Name
Digital Multimeter
Type
True RMS Auto-Ranging
Display Type
Backlit LCD
Voltage Range AC
600 V
Voltage Range DC
600 V
Capacitance Range
400 µF
Resistance Range
50 MO
Audible Continuity
Yes
Diode Test
Yes
Temperature Range
-40 to 1832 °F
Data Hold
Yes
Counts
4000
Dimensions
6 in L x 3.16 in W x 1.78 in H
Amperage Range AC
10 A
Amperage Range DC
10 A
Frequency Range
1 Hz – 50 kHz
Material
ABS
Warranty
Limited
Includes
Test Leads, Batteries, Thermocouple and User Manual
Standards
CAT III, CE and UKCA Certified
Application
For Testing and Measuring Voltage
UPC
092644693748
