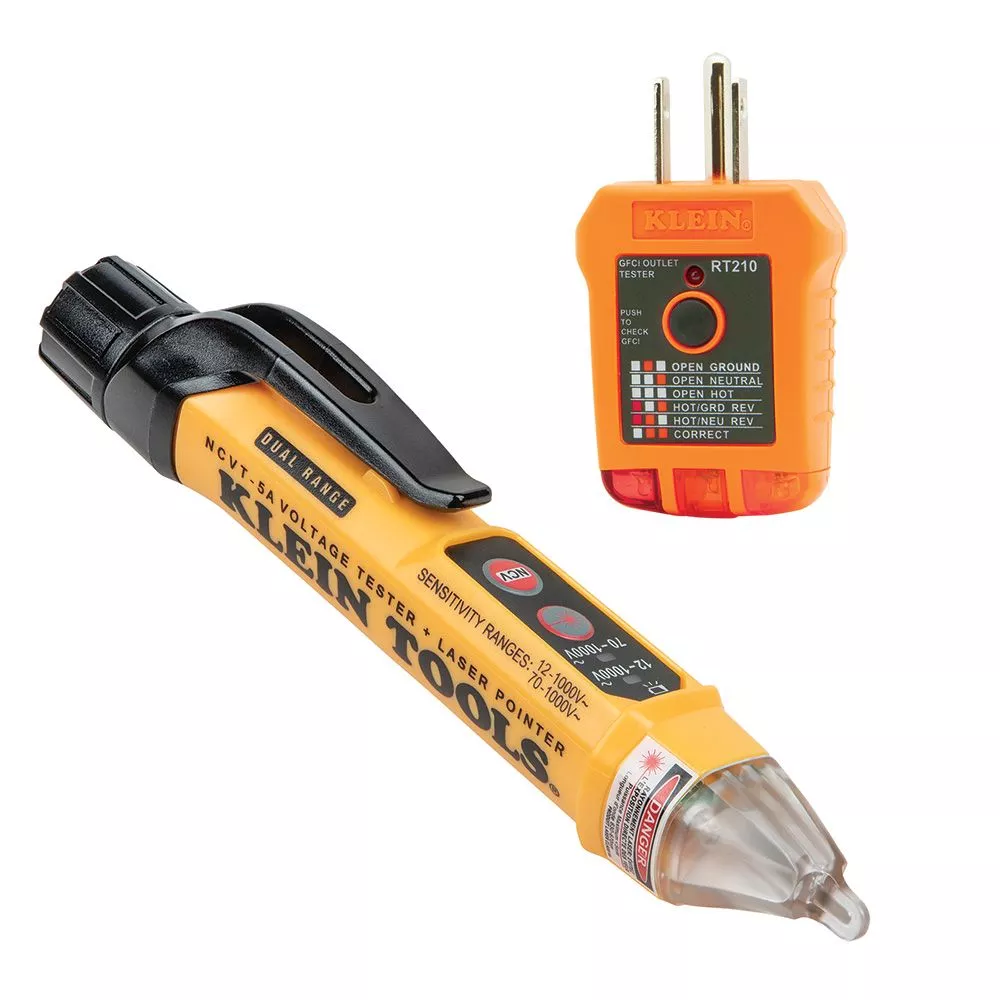

The NCVT5KIT includes a dual-range non-contact voltage tester with laser pointer and a GFCI receptacle tester. The NCVT-5A automatically detects and indicates voltage (12 – 1000V) allowing broad application. The RT210 will troubleshoot the most common wiring problems in standard and GFCI receptacles.
NCVT-5A provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
NCVT-5A delivers simultaneous visual and audible voltage indicators when AC voltage is detected
Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source it is
Works on GFCI outlets and confirms operation of the ground fault protective device
Conditions the RT210 indicates: open ground, reverse polarity, open hot, open neutral, hot/ground reversed
Class IIIa laser (21CFR1040.10 and 1040.11 – IEC60825-1 Ed.3) with an output power of less than or equal to 5mW at 630-670nm
Specifications
Brand Name
Klein Tools
Item Name
AC Voltage Tester with Laser Pointer and GFCI Receptacle Tester
Type
Non-Contact, Dual Range
Voltage Rating
12 – 1000 VAC
Maximum Voltage Range
1000 VAC
Power Supply
Battery
Indicator Type
Audible/Visual
Battery
(2) AAA
Frequency Rating
50 – 500 Hz
Environmental Conditions
2° Pollution
Diameter
1.16 in
Material
Plastic
Dimensions
6 in L x 0.96 in H
Includes
NCVT-5A Dual Range Non-Contact AC Voltage Tester, RT210 GFCI Receptacle Tester, Instructions and All Required Batteries
Standards
CAT IV 1000V, Laser, Class 3A, 630-670nm, Max Power <5 mW
Application
Dual-Range Non-Contact Detection of the Presence of AC Voltage from 12 – 1000 VAC or From 70 – 1000 VAC
UPC
092644692369
