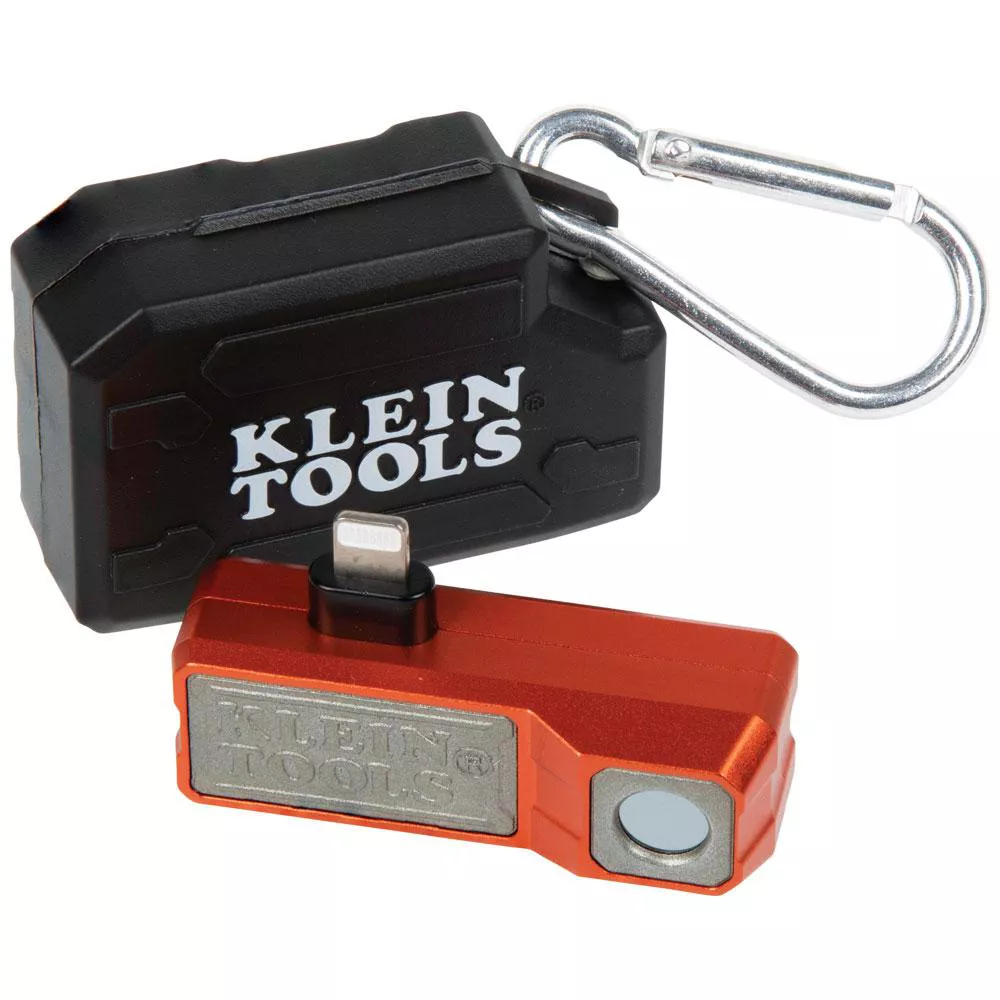

The Klein Tools TI222 Thermal Imager for iOS Devices has 10,800 pixels delivering excellent resolution to troubleshoot hot and cold spots. This Thermal Imager is perfect for detecting hot spots in panels, on wiring, or on parts of equipment; helping find sources of energy loss within a home/building; helps detect moisture behind walls and flooring; clogs in pipes; and much more. Fits phone cases up to 1/16-Inch (1.5 mm). Phone cases thicker than 1/16-Inch (1.5 mm) may require removal of case for secure connection. Easily capture, store, and share thermal images and video through the Klein Tools Thermal Imager App, available for free in the App Store.
Thermal Imager for iOS Devices has 10,800 pixels to deliver excellent resolution for troubleshooting hot and cold spots
Fits phone cases up to 1/16-Inch (1.5 mm) phone cases thicker than 1/16-Inch (1.5 mm) may require removal of case for secure connection
Compatible with iOS devices 11 and higher
Klein Tools Thermal Imager App is available for free in the App Store
Specifications
Brand Name
Klein Tools
Item Name
Thermal Imager
Type
Thermal Imager
Temperature Range
-4 to 752 °F
Resolution
10800p
Sensitivity
<60 mK
Accuracy
+/-2°C or 2%
Display
External Device
Field of View
50° Horizontal, 50° Vertical
Spectral Response
Yes
Memory
External Device
Temperature Rating
-4 to 752 °F
Dimensions
2.13 in L x 0.73 in W x 1.07 in H
Warranty
Limited
Weight
1 oz
Includes
Hard Storage Case with Carabiner and Instructions
Standards
CE and UKCA Certified
Application
View Hot and Cold Spots For Instant Troubleshooting
UPC
092644693618
