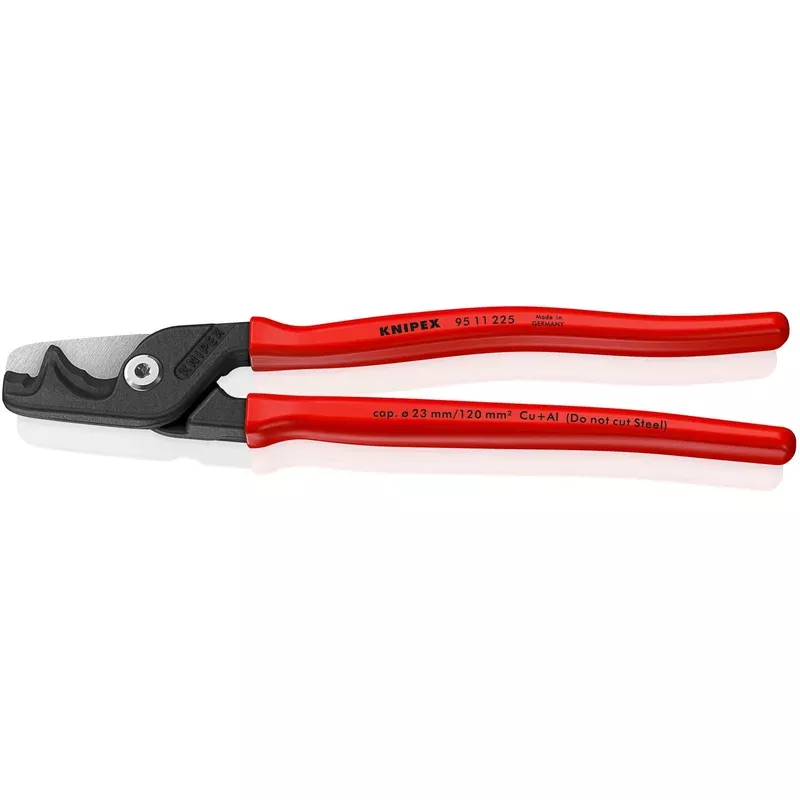

General Information Brand KNIPEX Part Number 95 11 225 Product Type Cable Shears Packaging Retail Country of Origin Germany UPC 843221029722 California Residents Proposition 65 Warning Physical Characteristics Length 9.08″ Width 1.76″ Height 0.64″ Weight 0.37 kg 0.81 lb Color Black & Red Finish Burnished Material High-Grade Forged Tool Steel Durability Approx. 56 HRC Details Size Compatible Cables: Stranded, Fine Stranded, Solid
Cutting Capacity – Cu and Al Conductor: 29/32″
Wire Size: Up to 2/0 AWG (Solid and Stranded Cables), Up to 4/0 AWG (Fine Stranded Cables) Grip Type Plastic Coating (6 1/4″) Pliers Type Cable Shears Jaw Width 1 1/4″ Jaw Length 1 1/4″ Jaw Thickness 1/2″ Features High-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears
Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG
Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting (“nibbling”) of larger cables
Easy one- or two-handed operation with minimal handle opening for large cable diameters
Slim head for better accessibility
Not suitable for steel-reinforced cables, e.g. ACSR
Adjustable, high-leverage bolted joint provides precise and smooth cutting
Pinch guard prevents operators’ fingers being pinched
Laser-hardened cutting edges (approx. 56 HRC)
High-grade special tool steel; forged; oil-hardened
