For use with Zeta P2 Handheld Joiners
or CNC Router with P-System tooling.
At a Glance:
- Acts as an adapter for Clamex P-14 (Clamex half with lever is slid into the LC P-16 adapter)
- Surface groove uses a Clamex P-10 bottom half connector
- For use in lightweight panels like honeycomb or foam core-eliminates the need to install concealed edges for connectors/hardware to fit and stay secure
- Suitable for material with a minimum edge thickness of 12mm
- Three sizes for different panel and material thickness
- Ideal for furniture and assemblies in lightweight construction, retail displays, caravans, and shipbuilding
The Details:
The LC P-16 is a specialized Lamello P-System connector for lightweight panels such as cardboard & plastic honeycomb, MDF, and hard foam. The main advantage of the LC P-16 is that it eliminates the need for concealed edges. Designed for builders, fabricators, and interior specialists, the LC P-16 combines the advantages of lightweight construction with the efficient and aesthetic Clamex joint.
The LC P-16 acts as a receiver for Clamex P-14 connector halves, creating durable joints in lightweight panels. Using a Zeta P2 joiner with an 18mm depth setting and 2mm adjuster cap, grooves can be cut directly into honeycomb materials. For precision, the Clamex P drill jig with interchangeable P-16 insert ensures perfect alignment, while a CNC with P-System capability can also be used.
Once installed, the LC P-16 allows you to connect panels just like any other Clamex P connector. The results are strong, clean joints that look professional and hold up under demanding use.

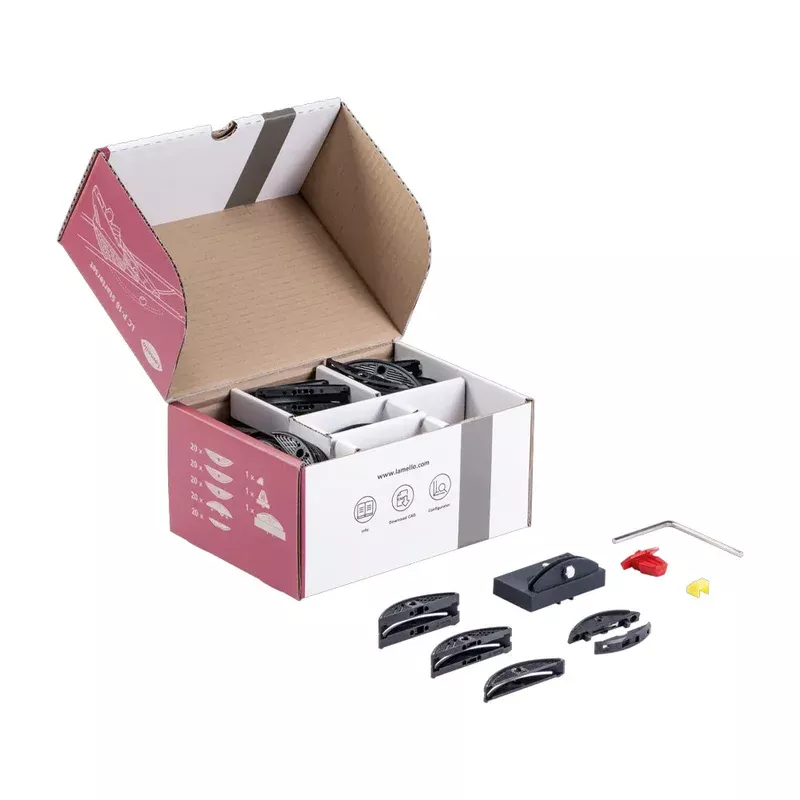

This set includes (20) LC P-16×11 connectors, (20) LC P-16×17 connectors, (20) LC P-16×22 connectors, (20) pairs of Clamex P-14/10 connectors, a positioning clip, a Clamex P drill jig, a depth adjuster cap, and an Allen key.
Installation Instructions
These instructions are for the Zeta P2. Can also be done with a CNC. It’s always best to confirm with your CNC’s manufacturer to determine what all you need for making the P-System groove.
- With the Zeta P2 depth set to 18, and the 2mm depth adjuster cap installed, cut the 16mm grooves in your workpiece edge.
- Use the Clamex P Drill Jig (sold separately) and the P-16 Insert Element to create the 6mm access hole.
- Remove the depth adjuster cap and set the Zeta depth to 10. Make the surface grooves.
- Insert the LC P-16 connector into the machined groove, then slide a Clamex P-14 connector half with the lever into the LC P-16.
- Insert a bottom half Clamex P-10 connector into the surface groove.
- Assemble the joint by sliding the two workpieces together, then locking the connector in place via the 6mm access hole with a 4mm Allen key or Clamex Installation Tool (sold separately). See secondary images as well as the “Video” tab to learn more.
Tip: Use Lamello’s LC P-16 Configurator to determine what size connector to use and which Zeta P2 cutting positions are ideal.
[TABS]
Features
- No concealed edging required: Time-saving anchorage directly in the surface layer.
- Fast installation: Inserting instead of screwing or gluing.
- Compatibility: Ideal for use with Clamex P-14, but can also be used with Clamex P-14 Flexus and Clamex P-14 CNC.
- Wide range of materials and thicknesses: Three product sizes available for various lightweight panel applications.
- Strong P-System anchorage: Form-locking anchorage across large surface areas.
Specs
Installation Tolerance: Longitudinal 1mmInstallation Tolerance: Radial 1mmMin. Material Thickness for Surface Cuts: 12mmMin. Material Thickness for Center Panel: 19mmMin. Workpiece Width: 73.5mmLC P-16×11 min. edge thickness: 12mmLC P-16×17 min. edge thickness: 22mmLC P-16×22 min. edge thickness: 27mm
Includes
- (20) LC P-16×11 connectors
- (20) LC P-16×17 connectors
- (20) LC P-16×22 connectors
- (20) Clamex P-14/10 connectors
- Positioning clip
- Clamex P drill jig
- Depth adjuster cap 2mm
- Allen key
