Product Description

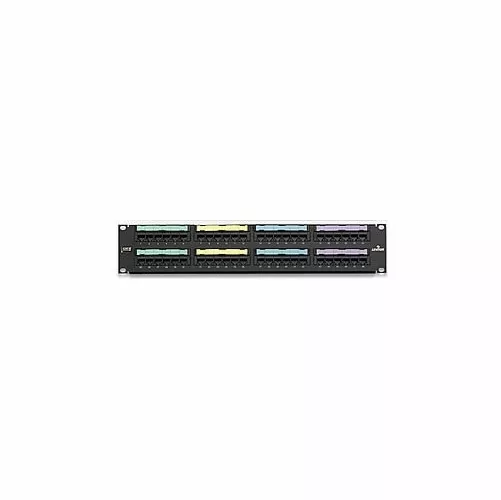

LEVITON 69586-U48 48 PORT CAT6 PATCH PANEL NEWeXtreme® 6+ Universal Patch PanelsPart Numbers69586-xxxTYPICAL SPECIFICATIONThe patch panel shall meet or exceed the requirements forCategory 6 described in TIA/EIA-568-B.2-1 as well as the Class Erequirements described in ISO/IEC 11801-B. The panels shallfeature both T568A and T568B wiring configurations, white IDC110-punchdown modules, mounting standoffs for cable managementbars, color-coded front window labeling, and a terminationstandoff for patch panel earthing/grounding. The panels shallhave universal T568A and T568B wiring card for terminations.The panels shall be made of 16 gauge steel, and shall have ablack painted finish with white silk-screening. The plasticelements shall be fire-retardant with a UL flammability rating of94V-0. The panel shall be offered in 12-, 24, 48-, 96-portconfigurations as well as an 89D 12-port configuration. The patchpanel shall be configured with six port modules. The 110termination on the rear of the panel shall follow normalinstallation color sequence (blue, orange, green, brown) from leftto right.
