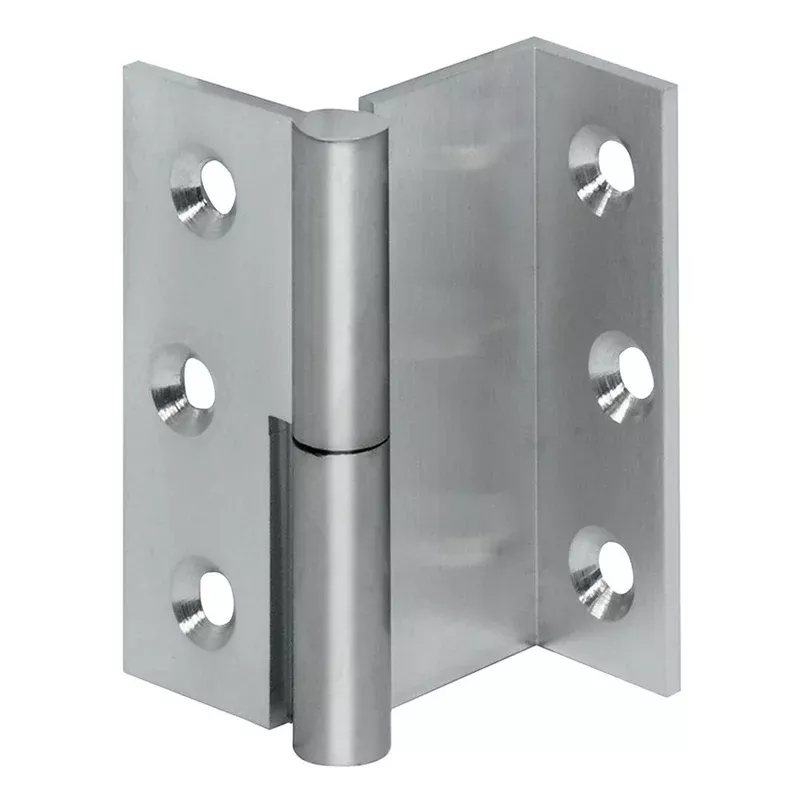

- The door will lift off of the cabinet after installation.
- This hinge works well for installing an overlay door.
- The minimum side panel thickness needed is 11/16″.
- For 270 degree functionality, align the bent leaf just proud of the outside surface of the side panel. This allows the door to open 270 degrees and lay flat alongside the side panel.
- Can also be used for single door and doors mounted side x side.
- Cranked hinge butting for front hung doors.
Hinge Dimensions (this is a metric designed hinge, these dimension are approximate and may vary by 1/32″):
- Bent leaf is 1/2″
- Hinge thickness is 5/64″
- Made to fit 3/4″ or 13/16″ thick door
