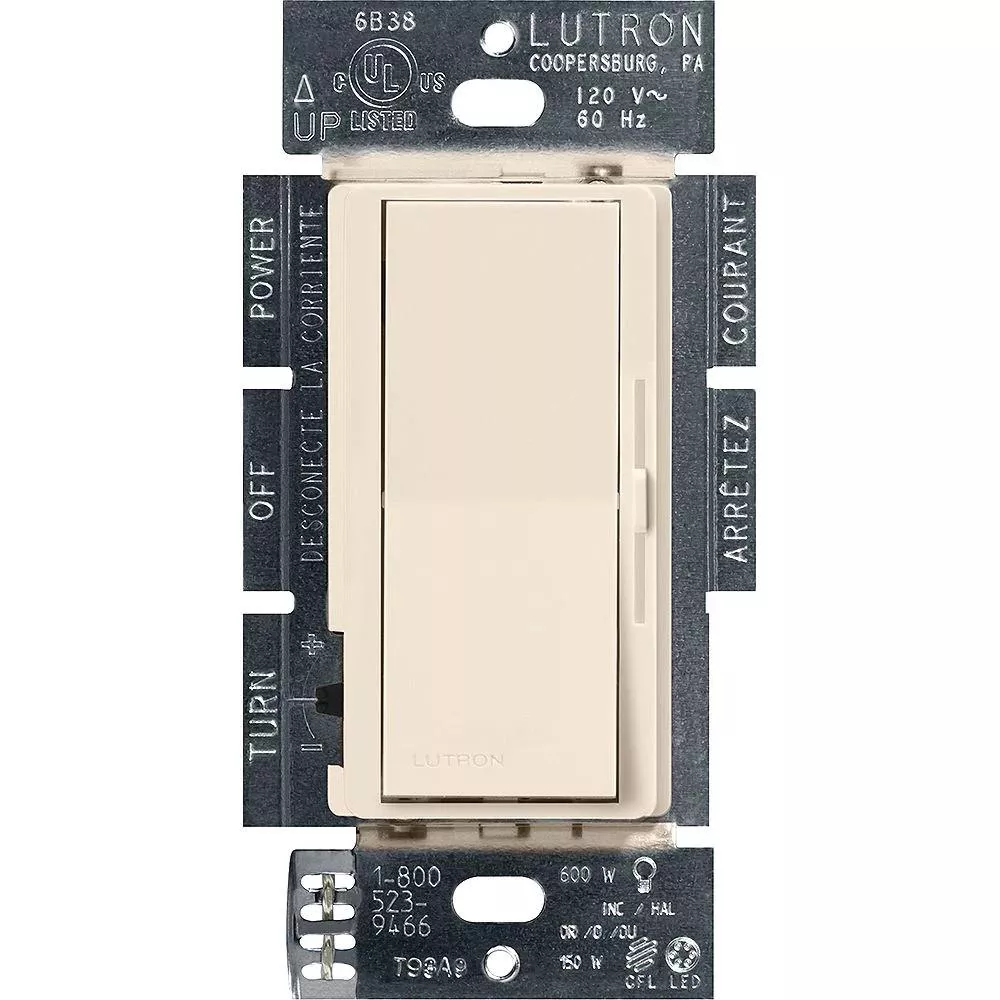

DIVA® C.L® Dimmer for CFL, LED, halogen and incandescent dimmable bulbs. Gloss finish. Large paddle switch with a captive linear-slide dimmer for a standard designer wallplate opening. HED™ Technology: Advanced Lutron® dimming circuitry designed for compatibility with most high efficacy light bulbs. ULR listed to control: dimmable compact fluorescent (CFL) with integrated ballast, dimmable LED with integrated driver, halogen, incandescent. low end adjustment to accommodate a wide range of bulbs. 100% factory tested.
Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
Provides over 250 lighting levels so you can create the perfect light for any activity
Works with up to 150-Watt of dimmable LED/CFL bulbs or 600-Watt of incandescent/halogen bulbs
Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
Can be used in single-pole or 3-Way applications with a mechanical switch.
Rocker switch turns lights on/off to favorite light level. Discreet slider dims and brightens the lights
Installs in as little as 15 minutes in homes of all ages – NO NEUTRAL REQUIRED
Includes (1) Diva LED+ (formerly C.L) Dimmer Switch; coordinating wallplate sold separately
Specifications
Brand Name
Lutron
Sub Brand
Diva
Item Name
Dimmer
Type
3-Way, 1-Pole
Size
2.94 in
Voltage Rating
120 V
Actuator Type
Paddle
Lamp Type
CFL/LED
Color
Light Almond
Power Rating
600 W
Terminal Type
Wire Lead
Head Material
Metal/Plastic
Dimensions
75 mm W x 40.6 mm D x 119 mm H
Mounting Type
Wall Box, Flush, Snapper
Temperature Rating
0 °C to 40 °C
Environmental Conditions
Indoor Use Only
Standards
UL Listed, CSA Certified, NOM Certified
Application
Lighting Control
UPC
027557003049
