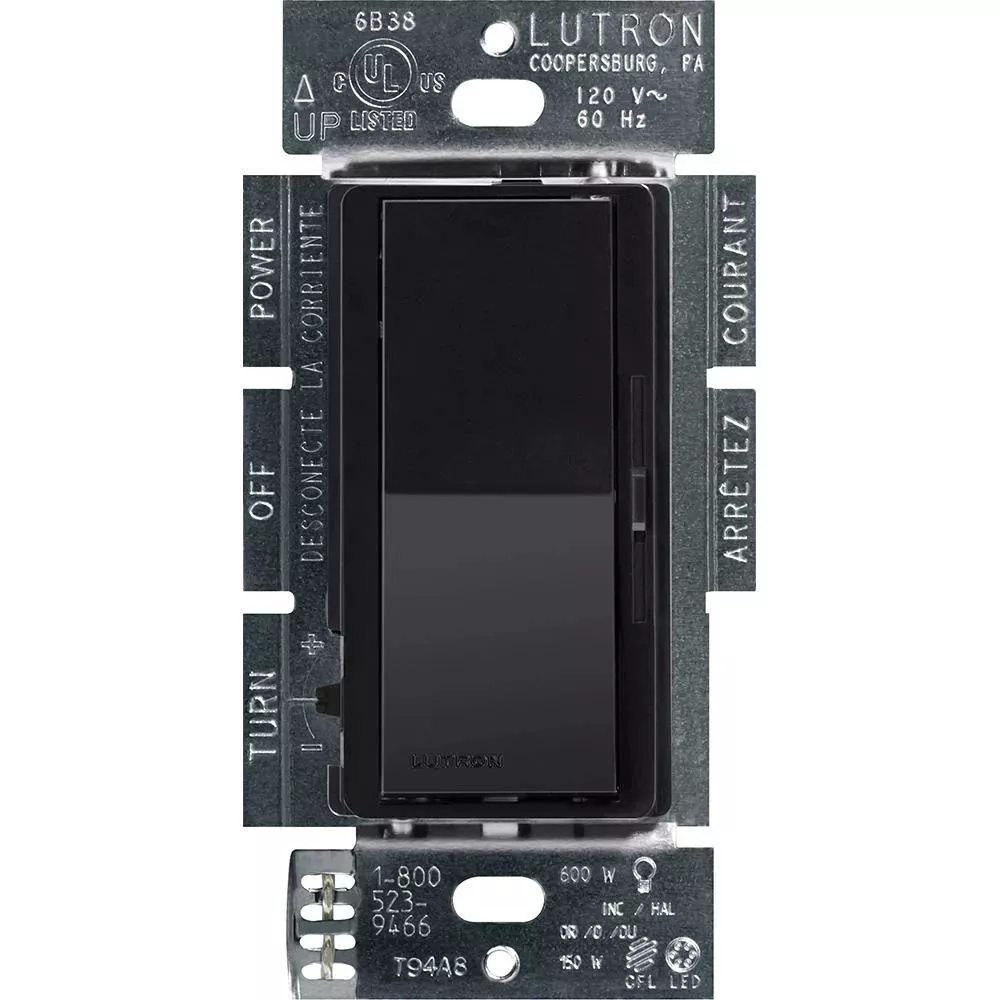

DIVA® C.L® Dimmer for CFL, LED, halogen and incandescent dimmable bulbs. Gloss finish. Large paddle switch with a captive linear-slide dimmer for a standard designer wallplate opening. HED™ Technology: Advanced Lutron® dimming circuitry designed for compatibility with most high efficacy light bulbs. ULR listed to control: dimmable compact fluorescent (CFL) with integrated ballast, dimmable LED with integrated driver, halogen, incandescent. low end adjustment to accommodate a wide range of bulbs. 100% factory tested.
Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
Provides over 250 lighting levels so you can create the perfect light for any activity
Works with up to 150-Watt of dimmable LED/CFL bulbs or 600-Watt of incandescent/halogen bulbs
Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
Can be used in single-pole or 3-Way applications with a mechanical switch.
Rocker switch turns lights on/off to favorite light level. Discreet slider dims and brightens the lights
Installs in as little as 15 minutes in homes of all ages – NO NEUTRAL REQUIRED
Includes (1) Diva LED+ (formerly C.L) Dimmer Switch; coordinating wallplate sold separately
Specifications
Brand Name
Lutron
Sub Brand
Diva
Item Name
Dimmer Switch
Type
3 Way, Paddle, Phase Cut-Off/Cut-On
Voltage Rating
120 V
Frequency Rating
60 Hz
Power Rating
150 W LED/CFL or 600 W Incandescent/Halogen
Number of Poles
1
Material
Plastic
Color/Finish
Black/Enamel Painted, Gloss
Indicator Type
Universal and LED Retrofit
Connection Type
Wire Lead
Operating Temperature
0 – 40 °C
Environmental Conditions
Indoor Use Only
Dimensions
2.94 in W x 1-1/2 in D x 4.69 in H
Mounting
Wallbox
Standards
UL Listed, CSA, NOM Certified
Application
For Dimmable LED/CFL, Incandescent/Halogen Lighting Control
UPC
027557003001
