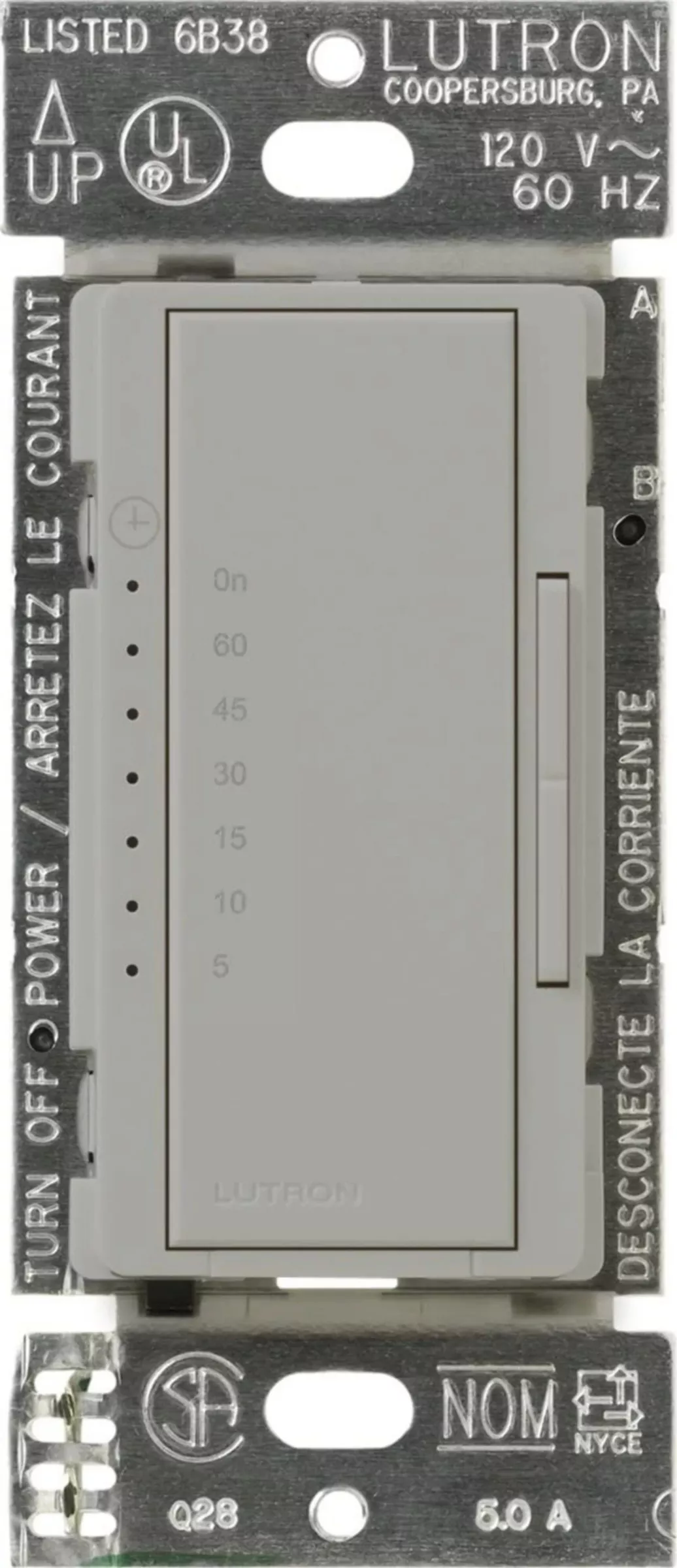

Countdown timer switch (5–60 minutes/full on). Use with exhaust fans to reduce moisture, mold and mildew in bathrooms and kitchens. Use with lighting. Tap on to start timer; tap off. Tap twice for untimed on. Touch rocker to adjust countdown time. One minute warning before lights/fan go off. Top LED is full on with no timer action. Timer advanced programming features available. Multi-location control with companion switch. Multi-location/single-pole 120 V 600 W/VA (5 A) on/off lighting load (incandescent/halogen, MLV, ELV, fluorescent) or 3 A general purpose fan(s). Requires neutral wire connection.
Includes (1) Maestro Countdown Timer Switch with Neutral; Gloss Finish
Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
Neutral required; 120V
5W/.05A minimum load, suitable for DC and high efficiency exhaust fans
Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch
Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
Available in 10+ colors
Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
Specifications
Brand Name
Lutron
Sub Brand
Maestro
Item Name
Countdown Timer Control Switch
Type
Multi-Location/Single-Pole
Voltage Rating
120 V
Amperage Rating
5 A
Wattage
600 W
Number of Poles
1
Contact Configuration
NO
Color
Gray
Mounting
Wallbox
Standards
ANSI/IEEE, cUL, IEC Approved, UL Listed
Application
For Lighting Control
UPC
027557290883
