FEATURES:• On/off paddle switch with a linear-slide dimmer for a standard designer wallplate opening.• Built-in soft-glow locator light behind paddle switch.†• UL® Listed to control:— Dimmable LED with integrated driver— Dimmable compact fluorescent (CFL) with integrated ballast— Incandescent/Halogen— Electronic Low-Voltage (ELV) transformers with halogen or LED (see Lutron App Note 559)• Reverse-phase type control. Neutral wire connection is required in the wallbox.• 100% factory tested.

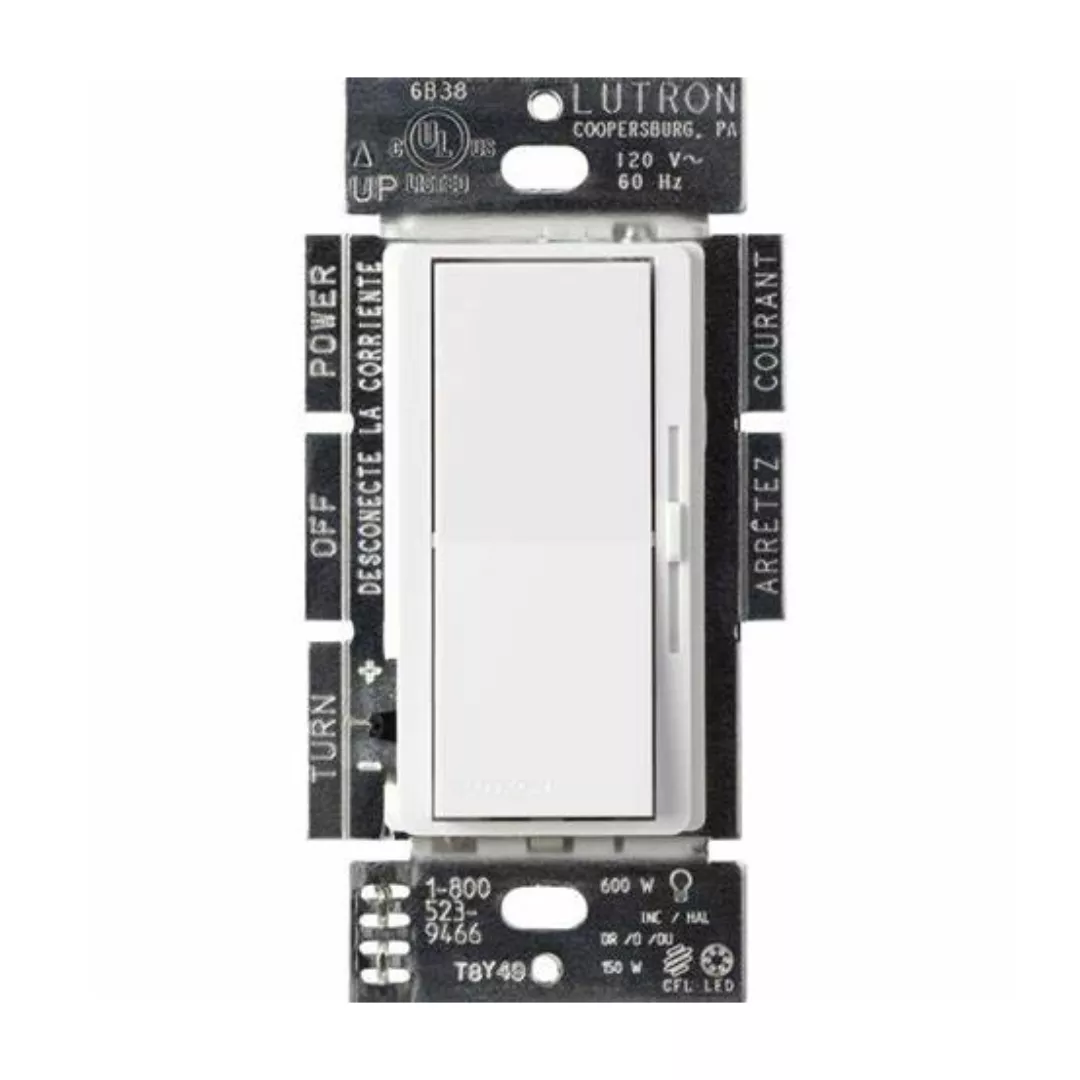

On/off paddle switch with a linear-slide dimmer for a standard designer wallplate opening.
UL Listed to control: Dimmable LED with integrated driver; Dimmable compact fluorescent (CFL) with integrated ballast; Incandescent/Halogen; Electronic Low-Voltage (ELV) transformers
Reverse-phase type control. Neutral wire connection is required in the wallbox.
100% factory tested
10 year warranty with product registration
Specifications
Brand Name
Lutron
Sub Brand
Diva
Item Name
Dimmer Switch
Type
Paddle, 3 Way, Low Voltage
Voltage Rating
120 V
Frequency Rating
60 Hz
Power Rating
250/500 W
Number of Poles
1
Material
Metal/Plastic
Color/Finish
White
Connection Type
Wire Leads
Operating Temperature
0 – 40 °C
Dimensions
4.69 x 2.94 in
Mounting
Wallbox
Special Features
Controls 120 V/250 W LED/CFL, and 500 W Incandescent and ELV Loads, Paddle Turns On/Off, Slide up to Brighten
Standards
UL Listed, CSA, NOM Certified
Application
For Lighting Control
UPC
784276221665
