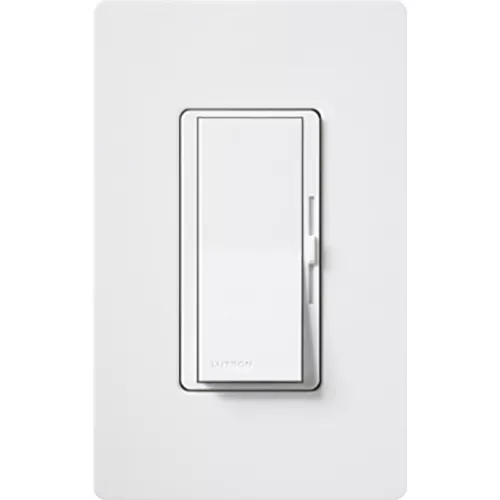

Controls for 0–10 V LED drivers and fluorescent ballasts. FEATURES:• Large paddle switch with a captive linear-slide control for a standard designer-opening wallplate.• 0–10 V control link controls third party fixtures.• Wires as a 24 V- switch. A power pack is required to switch 120–277 V~ and 347 V~.• Patented switching technology extends product lifetime.• Coordinating Claro and Satin Colors wallplates 1 (available separately).• High-end and low-end trim user adjustable for optimal performance.
For use in controlling 0-10-Volt LED drivers and/or fluorescent ballasts
Separate Power Pack (PP-DV) required for dimmer; Power Pack requires Neutral.
Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
Can be used in single pole or 3-way applications
Easily replaces existing switch and installs in as little as 15 minutes
Includes (1) Diva 0-10V dimmer switch; coordinating wall plate and required Power Pack (PP-DV) sold separately
Specifications
Brand Name
Lutron
Sub Brand
Diva
Item Name
Dimmer Switch
Type
Class 2, Paddle
Voltage Rating
24 VAC
Frequency Rating
50/60 Hz
Number of Poles
1
Material
Plastic
Color/Finish
White/Untreated, Gloss
Indicator Type
LED
Connection Type
Wire Lead
Operating Temperature
0 – 40 °C
Environmental Conditions
Indoor Use Only
Dimensions
2.94 in W x 1.59 in D x 4.69 in H
Mounting
Wallbox
Standards
UL Listed, CSA Certified
Application
For 0 – 10 V LED or Fluorescent Lighting Control
UPC
027557663458
