Maestro timers help you save money and energy by automatically turning off lights and fans after a preset time. Using Lutron timers on bathroom exhaust fans can reduce the chance of a costly mold problem, and timers attached to garage lights can add an extra layer of safety when you return home at night.
Includes (1) Maestro Countdown Timer Switch with Neutral; Satin Finish
Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
Neutral required; 120V
5W/.05A minimum load, suitable for DC and high efficiency exhaust fans
Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch
Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
Available in 10+ colors
Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
Specifications
Brand Name
Lutron
Sub Brand
Maestro

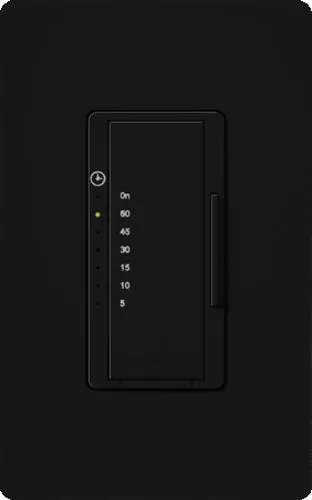

Item Name
Countdown Timer Switch
Type
1-Pole, Multi-Location
Voltage Rating
120 V
Amperage Rating
3 – 5 A
Wattage
600 W
Time Setting Range
5 – 60 min
Number of Poles
1
Contact Configuration
NO
Frequency Rating
50/60 Hz
Color
Midnight
Dimensions
4.69 x 2.94 in
Enclosure Type
Plastic
Mounting
Wallbox
Standards
UL Listed, cUL Listed, IEC, ANSI/IEEE
Application
For Lighting Control
UPC
027557290951
