Maestro timers help you save money and energy by automatically turning off lights and fans after a preset time. Using Lutron timers on bathroom exhaust fans can reduce the chance of a costly mold problem, and timers attached to garage lights can add an extra layer of safety when you return home at night.

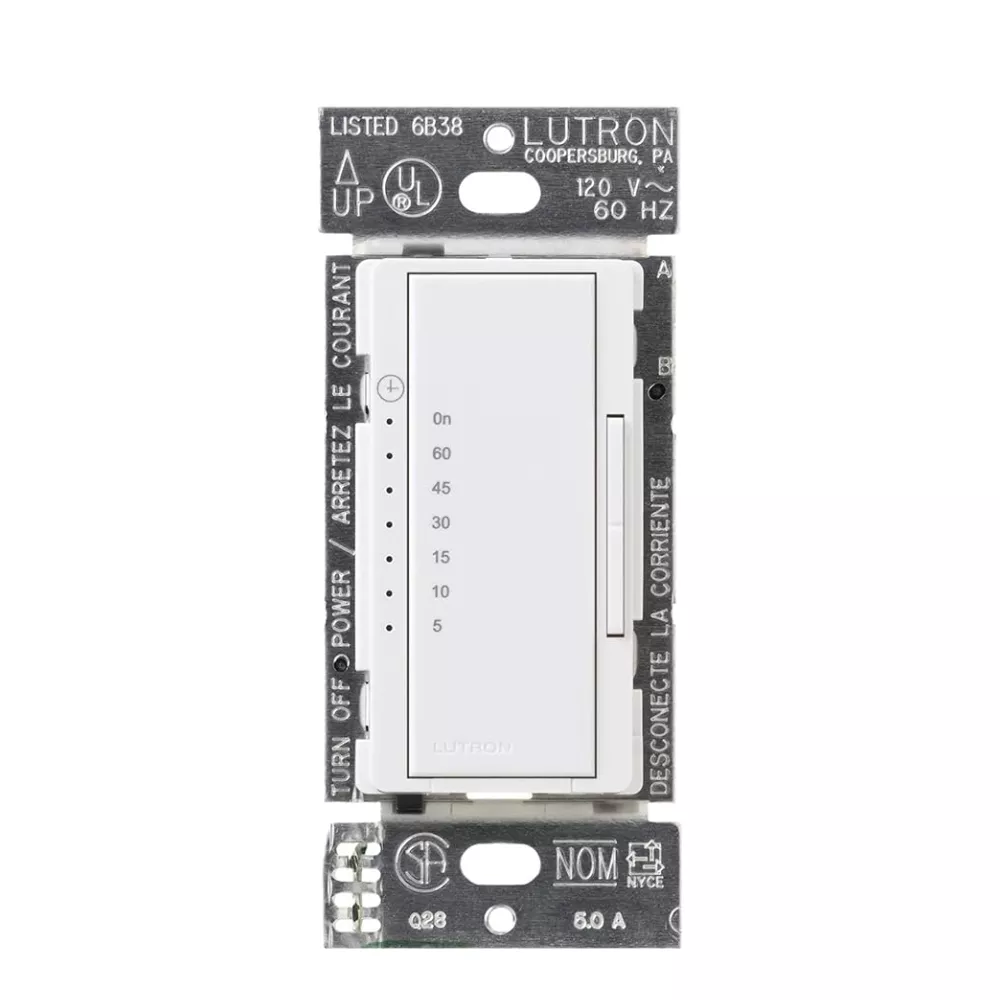

Includes (1) Maestro Countdown Timer Switch with Neutral; Gloss Finish
Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
Neutral required; 120V
5W/.05A minimum load, suitable for DC and high efficiency exhaust fans
Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch
Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
Available in 10+ colors
Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
Specifications
Brand Name
Lutron
Sub Brand
Maestro
Item Name
Countdown Timer
Type
1-Pole
Size
2.94 in
Voltage Rating
120 V
Amperage Rating
5 A
Contact Configuration
NO
Color
White
Dimensions
119 x 75 x 37 mm
Mounting Type
Wallbox
Standards
ANSI/IEEE, UL, cUL Listed, IEC Rated
Application
Multi-Location, Lighting Control
UPC
027557290845
