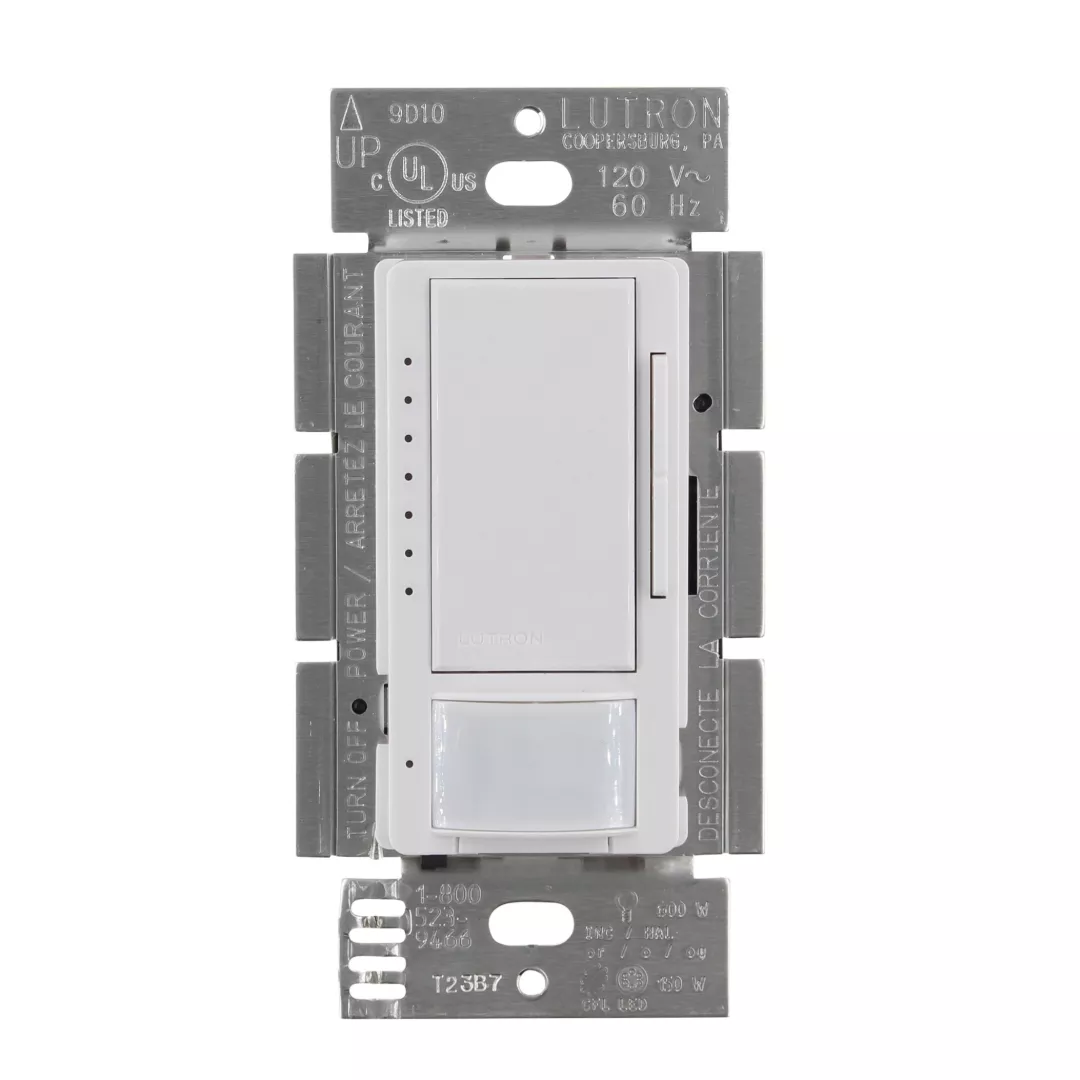

MAESTRO® Occupancy sensor C•L® dimmer. Lighting control with passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Controls CFL, LED, incandescent and halogen load types. XCT™ technology for fine motion detection. Occupancy version can be set to auto-ON/auto-OFF or manual-ON/auto-OFF. Adjustable timeout (1, 3, 5, 15 or 30 minutes) and high/low sensitivity adjustment. Light levels can be fine-tuned by pressing and holding the dimming rocker until the desired light level is reached.
Includes (1) Maestro LED+ Motion Sensor Dimmer Switch; Gloss Finish
Rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs; No Neutral or Ground required
Screw Terminal or Push-in Installation; 120V
Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R); compatible with an existing 3-way switch
Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
Easy button programming mode available to customize dimmer and sensor functions such as timeout, occupied light level, and sensor mode
Complies with Title 20/24 Section 110.9 for “automatic shutoff”
Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room
Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
Specifications
Brand Name
Lutron
Sub Brand
Maestro
Item Name
Occupancy Sensor
Type
3-Way, Multi-Location, Indoor
Voltage Rating
120 V
Number of Poles
1
Sensor Type
Passive Infrared
Sensing Distance
10.7 m Floor/Front, 9 m Side
Viewing Angle
180°
Coverage Area
400 – 900 ft²
Color
White
Mounting Type
Wallbox, Flush
Frequency Rating
60 Hz
Maximum Load Capacity
600 W Incandescent/Halogen, 140 W CFL/LED
Response Time
30 min
Material
Plastic
Dimensions
75 mm W x 41 mm D x 119 mm H
Mounting Height
1.2 m
Temperature Rating
0 °C to 40 °C
For Use With
Single Standard Mechanical 3-Way switch or up to 9 Companion Dimmers/Switches
Standards
UL, cUL Listed, California Title 20/24 Compliant
Application
For Lighting Control
UPC
784276054843
