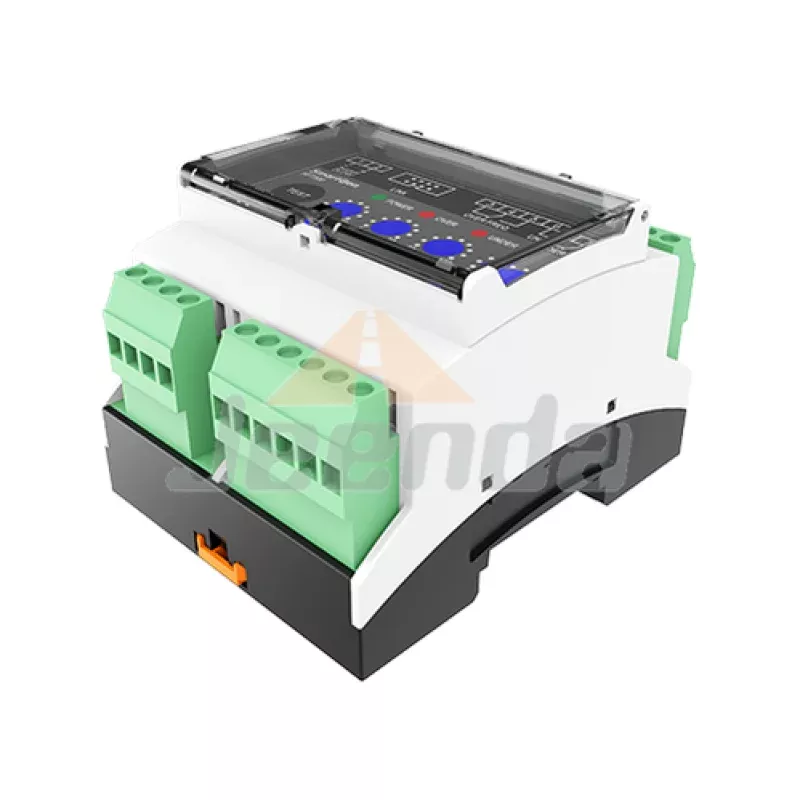

Marine Generator Control Module HFT300 Frequency Test Relay

Marine Generator Control Module HFT300 Frequency Test Relay

HFT300 frequency test relay is widely used in the marine Genset field and land Genset field.

• Power SupplyDC(8~35)V
• Case Dimensions89.7*71.6*60.7(mm)
• Operating Temp. (-25~+70)
• Weight0.24kg

CHARACTERISTICS:

1. Suitable for 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire and 2-phase 3-wire systems with frequency 50/60/400Hz;

2. Over/under frequency protection function;

3. An adjustable potentiometer allows for set value adjusting and delay value setting;

4. relay output

5. One testbutton, test theover/under frequency relay and indicator;

6. Widely power supply range DC(8~35)V, suitable to different starting battery voltage environment;

7. 35mm guide rail mounting;

8. Modular design, pluggable terminal, compact structure with easy installation.
