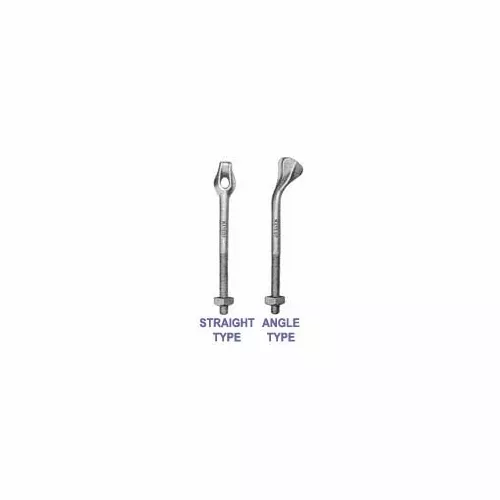

MCLEAN J8153 5/8 x 14 ANGLED THIMBLEYE BOLT NEWThimbleye® bolts are forged in two styles , straight and bent at a 45° angle.The broad radius of the eye provides an excellent attachment point to deadend or guy messenger wire, guy strand or formed wire grips.Thimbleye® bolts eliminate the need for thimbles, shackles, links and guy hooks. Minimum ultimate tensile strength for 5/8″ diameter bolts is 13,550 pounds and the 3/4″ diameter bolts minimum tensile strength is 20,050 pounds.Material: Hot Dip Galvanized Angle TypeCatalog Number J8153Bolt Diameter (Inches) 5/8″Bolt Length ‘L’ (Inches) 14″Thread Length ‘T’ (Inches) 6″Weight/100 (lbs) 184
