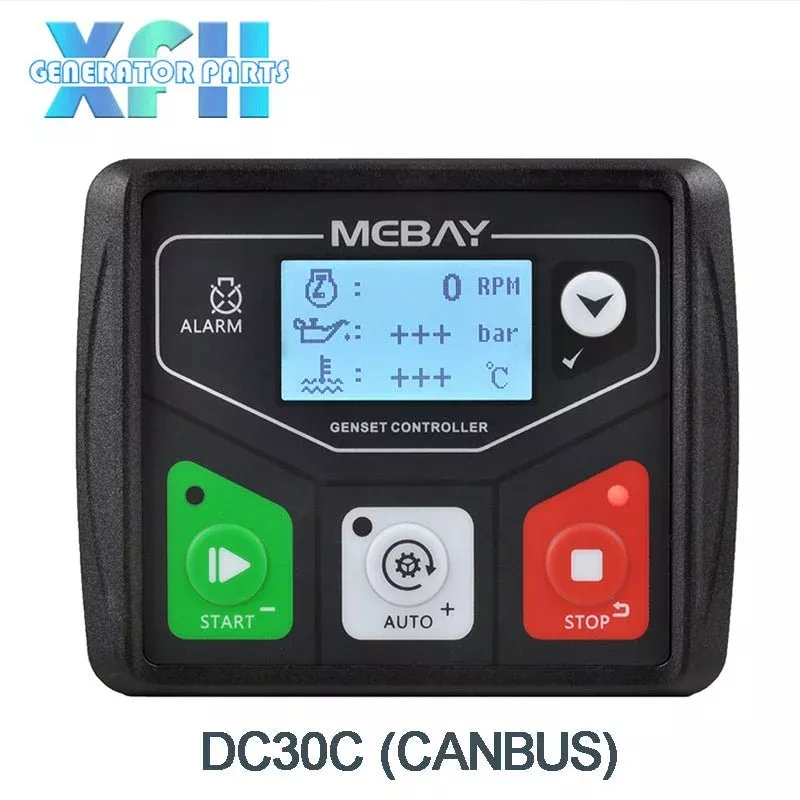

This series of controller is specially designed for the start, stop, parameter monitoring and fault monitoring of EFI diesel, gasoline and gas generator sets, and has parameter setting function.
Parameters Display
- EngineRPM;
- Engine oil pressure;
- Engine temperature;
- Engine fuel level;
- Engine battery voltage;
- Generator voltage L-N;
- Generator current A;
- Generator Frequency Hz;
- Generator active power KW;
- Successful start Times;
- Current running time;
- Total running time;
- Classes maintenance notice.
Alarm protection
- Over speed;
- Under speed ;
- Low oil pressure ;
- High temperature;
- External emergency alarm;
- Sensor Open;
- Over Frequency;
- Under Frequency;
- Over voltage;
- Under voltage;
- Over current;
- Low water level alarm;
- Emergency Stop;
- Crank failure;
- Stop Failure;
- Over battery voltage;
- Under Battery voltage.
|
Options |
Parameters |
|
Operation Voltage |
DC8-36V Continuous |
|
Power Consumption |
Standby24VMAX 1W |
|
Working24VMAX 2W |
|
|
AC Voltage Input |
1P2W(L-N input) 30VAC-360VAC(ph-N) |
|
Operation Voltage |
DC8-36V Continuous |
|
Fuel Relay Output |
1Amp DC+VE Supply voltage |
|
Start Relay Output |
1Amp DC+VE Supply voltage |
|
Programmable Relay output 1 |
1Amp DC+VE Supply voltage |
|
Programmable Relay output 2 |
1Amp DC+VE Supply voltage |
|
Programmable Relay output 3 |
1Amp DC+VE Supply voltage |
|
Switch value input |
Connected to battery negative pole effective |
|
Working condition |
-25-65 |
|
Storage condition |
-40-85 |
|
Protection Level |
IP54when waterproof rubber gasket is added between controller and its panel |
|
Insulation strength |
Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. |
|
Overall dimension |
106mm86mm45mm |
|
Panel cutout |
78mm66mm |
|
Weight |
0.25Kg |
