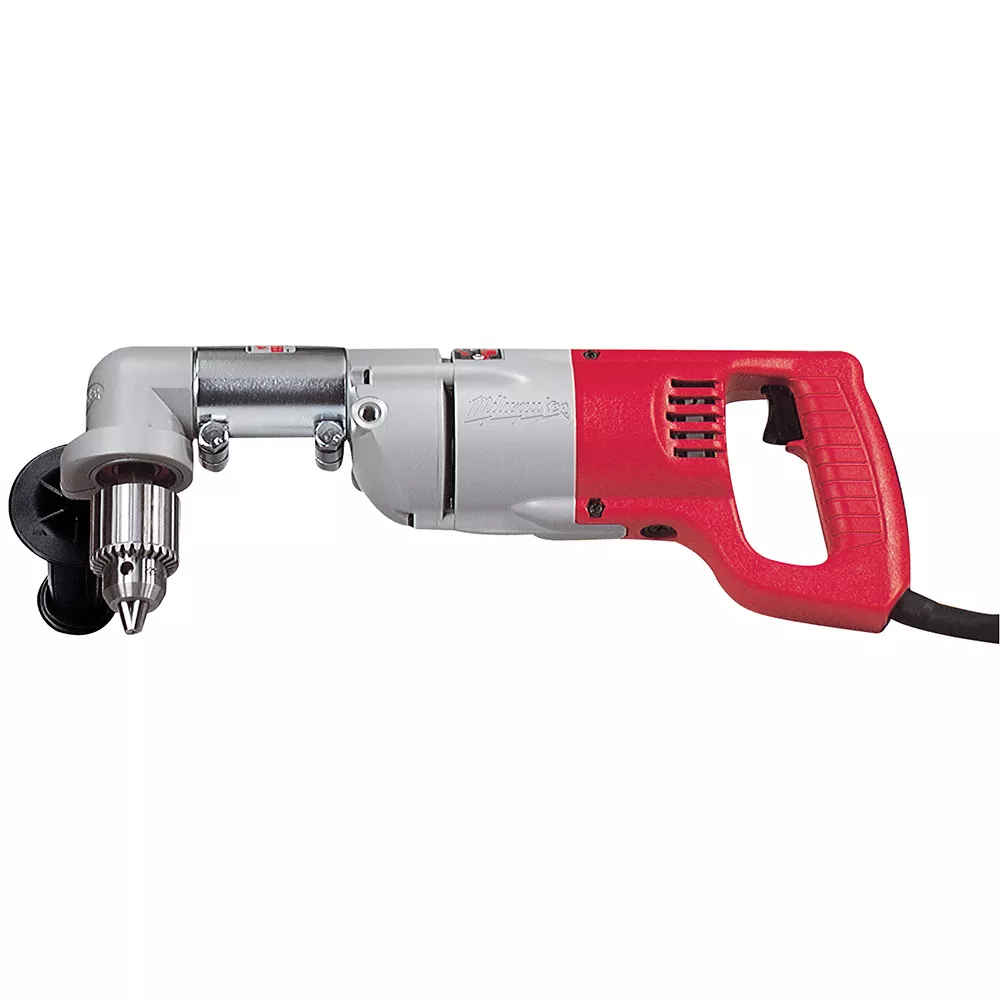

The perfect tool for stud and joist drilling – and a host of other applications. With a powerful Milwaukee-built motor and right angle drive head, the 1/2″ D-Handle Right Angle Drill is flexible enough to handle a variety of applications. The powerful 7-amp motor delivers 0-500 RPM, so when combined with the two-speed head, you get 0-335 RPM on the low setting and 0-750 RPM on high. Helical-cut, heat treated gears deliver quiet performance and extended tool life with wood, metal, plastics and composites. The drill’s head and handle swivel 360°, and there’s a side handle for a secure grip and comfortable, controled operation. The QUIK-LOK®cord detaches easily for storage or service replacement. This 1/2” D-handle Right Angle Drill comes in an impact-resistant carrying case, with a 9/16” open-end wrench and 3/16” socket wrench.
1/2 in. capacity in steel, handles up to a 4-5/8 in. “Selfeed” bit
Trigger speed control in two ranges: 0-335/0 to 750 RPM, reversing
Powerful 7 amp motor
Head and handle swivel 360 degree
Specifications
Brand Name
Milwaukee
Sub Brand
MILWAUKEE
Item Name
Drill Kit
Type
Right Angle, Grounded, Corded
Chuck Size
1/2 in
Chuck Type
Keyed
No Load RPM
0 – 500 r/min
Voltage Rating
120 V
Amperage Rating
7 A
Capacity
1/2 in Steel, 2-9/16 in Selfeed Bit
Number of Speeds
2
Cord Length
8 ft
Housing Material
Metal
Handle Type
D-Handle
Color
Black, Red, Gray
Control Type
Trigger Switch
Gear Train
Quadruple
Tool Length
16-3/4 in
Includes
(1) Side Handle, (1) 9/16 in Open End Wrench, (1) 3/16 in Socket Wrench, (1) RAD Assembly
Standards
UL Listed, CSA Certified, ETL Listed
Application
For Stud and Joist Drilling
UPC
045242005239
